Glossary

The Glossary functionality offers a way to find documents by browsing an index page.

Glossary management

Once logged in, the user can find the two menu items, Glossary Definition and Glossary Usage in CATALOGS of the Knowage main menu, as shown below.

../_images/image456_8.1.png

Fig. 598 Glossary menu items.

To create a new glossary, just click on the Glossary Definition menu item. As shown in the figure below, the page contains two areas:

  • Words List: contains the list of all the defined words to be used as labels to attach to analytical objects, as datasets or documents;

  • Glossary: intended as a hierarchical structure made up of Words.

../_images/image457_8.1.png

Fig. 599 Glossary definition window.

As shown above, next to each word, there are two icons:

  • i: prompts the details of the selected word: name of the Word, Status, Category, Description, Formula, Links to other words and Attributes

  • delete: deletes the selected word

In the “Word” area are listed, if any, the words created in a previous moment. To explore the detail of each of them, the user just has to right click on it. A panel containing three features will be shown, as figure below highlights .

../_images/image458_8.1.png

Fig. 600 Exploring the details of an existing word.

To add a new word, click on the Plus icon available next to the Word List text item an fill in at leats the mandatory information,*Word*, Category and Description. Use the Save button to save it a. Once saved, you can search for it or a different word just using the search filter.

../_images/image459_8.1.png

Fig. 601 Add a new word.

The Glossary panel contains all the glossaries formerly created. To explore an existing glossary just open the menu of the Glossary Definition item and select one of the test options. The figure below shows an example. A hierarchical structure of the glossary appears, where each node has its own words .

../_images/image460_8.1.png

Fig. 602 Exploring a glossary from the menu.

To add a new glossary click on the Plus icon next to the Glossary Definition text item.

../_images/image46162_8.1.png

Fig. 603 New glossary wizard.

After assigning a name to the Glossary Definition field, the Glossary is automatically saved.

Click on ADD NODE, fill in the node name and save. The image below shows the ADD Node functionality and also how to add words to a node once created.

../_images/image463_8.1.png

Fig. 604 Add items to the node(s) and words to nodes.

Glossary Usage

This functionality works accordingly to the user role and includes features that allow to create/visualize the associations of the words of a glossary to:

  • documents,

  • datasets,

  • business classes and

  • tables (columns).

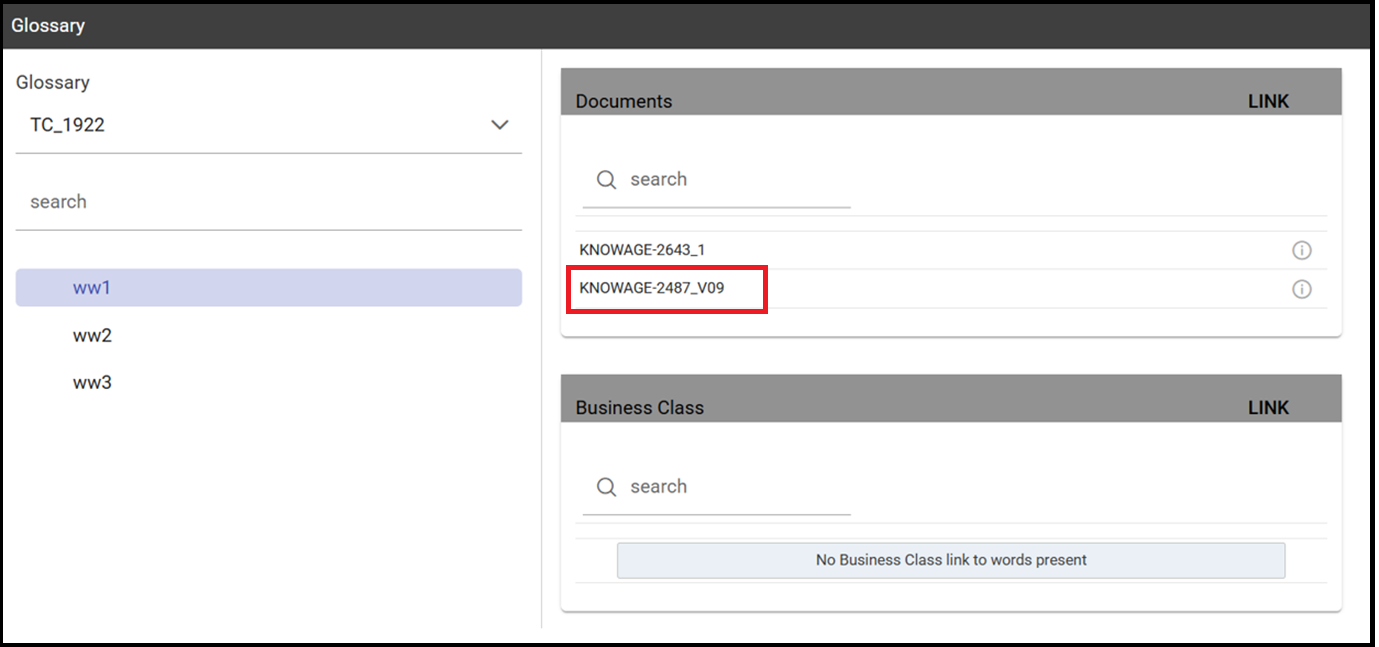

The details of all the defined glossaries can be displayed just selecting Glossary Usage from CATALOGS of the Knowage main menu.

../_images/image464_8.1.png

Fig. 605 Glossary Usage graphic interface.

Select a glossary from the combobox available and search for a word inside the glossary. The page refreshes showing the links of that word with the components metioned above.

In case of no links with i.e. a Table, a message prompts informing that there are no links to the word.

../_images/no_links_table_8.1.png

Fig. 606 No table links to words.

To associate the glossary to a specific component, just click on the LINK functionality next to each element. See figure below as example.

../_images/links_dataset_1_8.1.png

Fig. 607 Linking a word to a dataset .

After clickin on LINK, a wizard opens. Here you can select the glossary and to associate the word it is enough to drag and drop it in the editor area of the chosen dataset. After closing the wizard, clicking on the i icon you can see the list of words associated. See image below:

../_images/links_dataset_2_8.1.png

Fig. 608 Linking a word to a dataset .

Help Online functionality

The user can view the association of a specific analytical element (dataset, document or model) by using the Help Online functionality from:

  • the Document Browser,

  • the toolbar of each document, once launched,

  • every dataset,

  • every entity of the Qbe model,

  • Birt reports,

  • the cockpit.

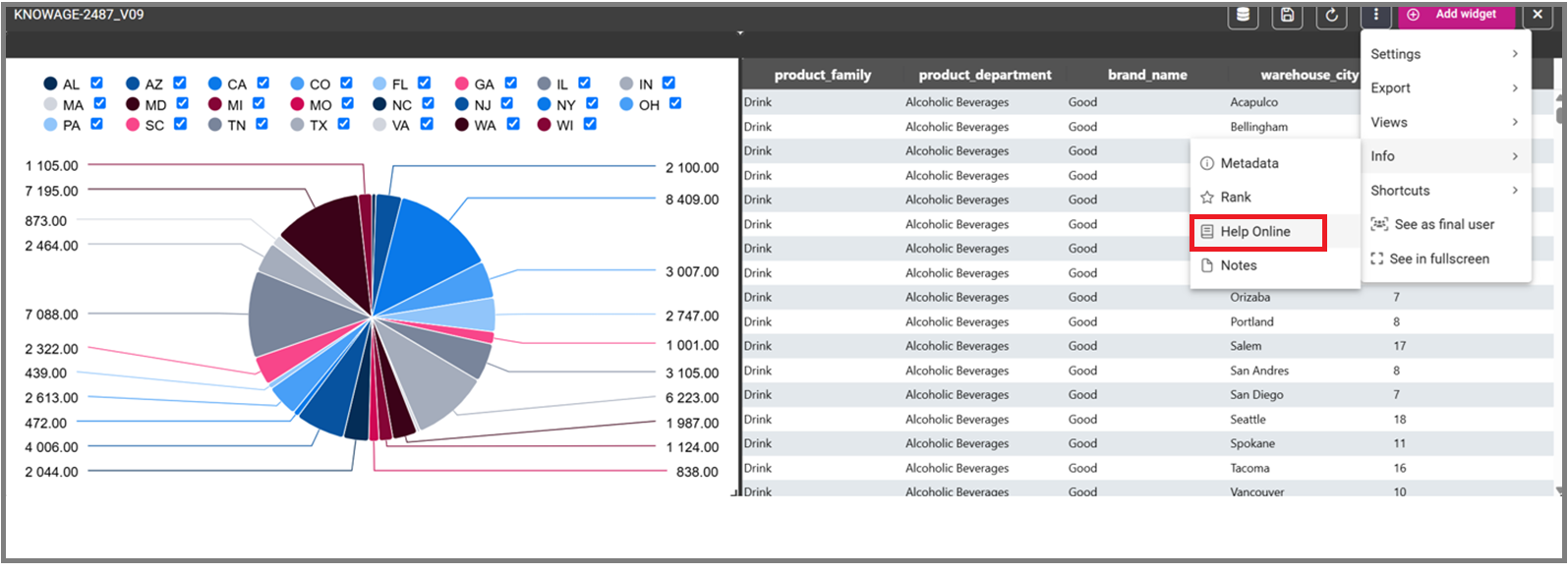

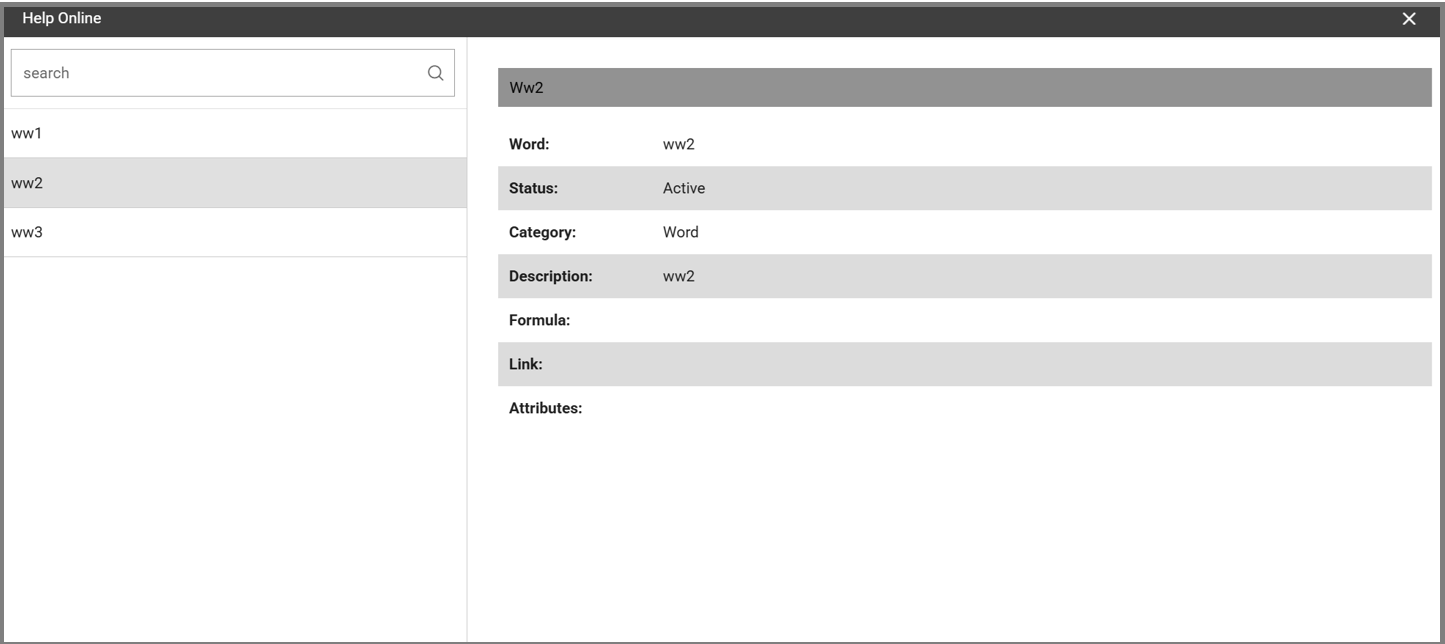

As an example, the figure below shows the graphic interface that the user will see once launched a document and used the Help Online functionality.

../_images/image474.png

Fig. 609 Help Online wizard.
