Create a New Dashboard

The graphical interface for creating the new dashboard looks slightly different from the one used for the previous cockpit. New features have been added, such as new charts and new widgets

The below pictures respectively show the chart gallery with the availability of new charts (some of them are highlighted in yellow) and new widgets enriched with the presence of the Pivot and Map widgets.

Chart gallery example

Given the wide range of graphs, a dedicated search function allows looking for the desired chart. Simply enter the type of graph to draw and press the search icon.

Widgets types

A dashboard document can be created:

• by final users from the Workspace

• by admin users from the document browser area

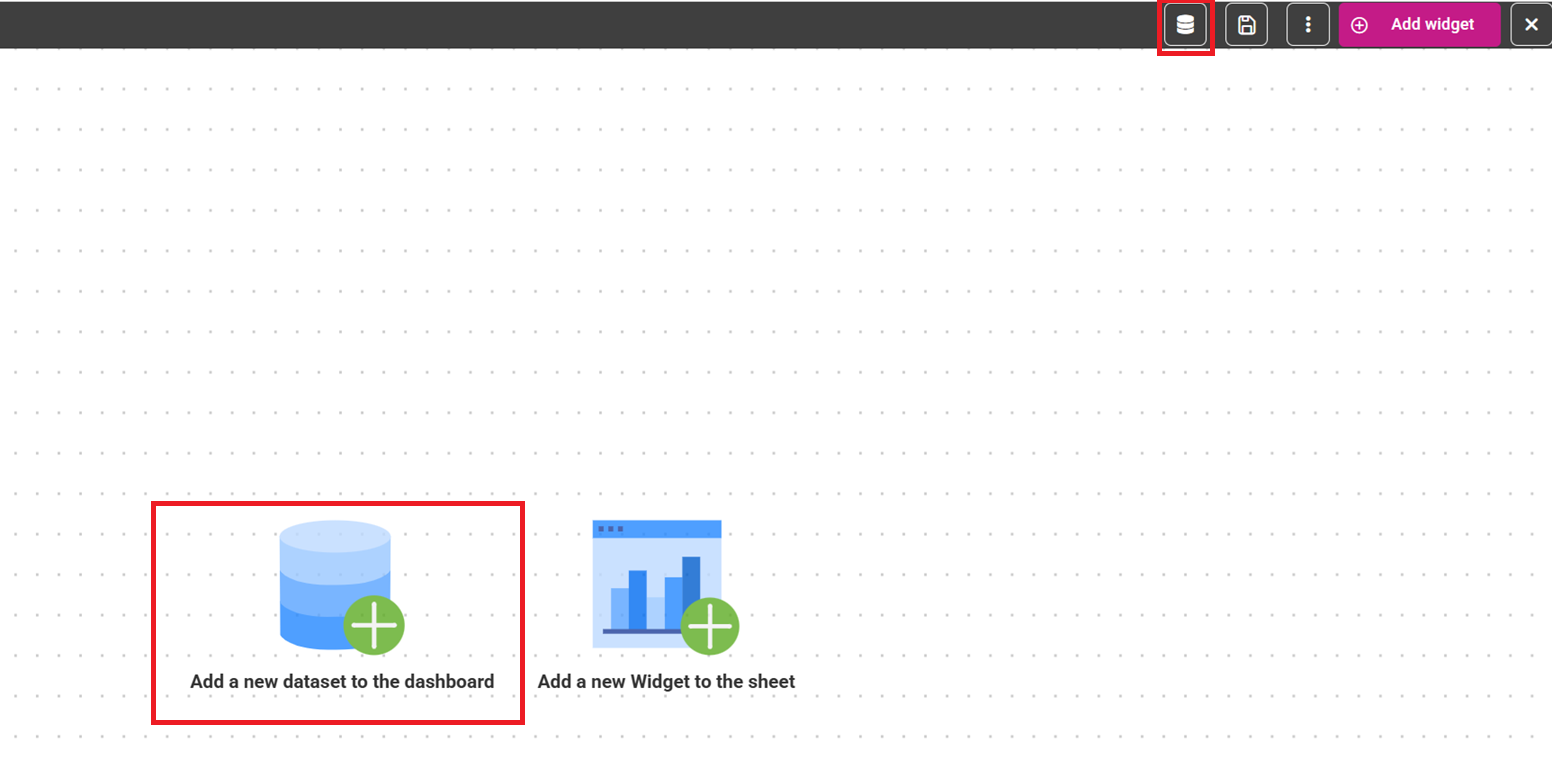

To create a dashboard the user should click the plus icon available in the right top corner and select Dashboard from the menu as shown below.

Creating a dashboard from the menu

The functionalities for inserting a dataset and a widget are immediately available in the sheet of the new dashboard. Below the list of the available functionalities.

Icon	Name	Function

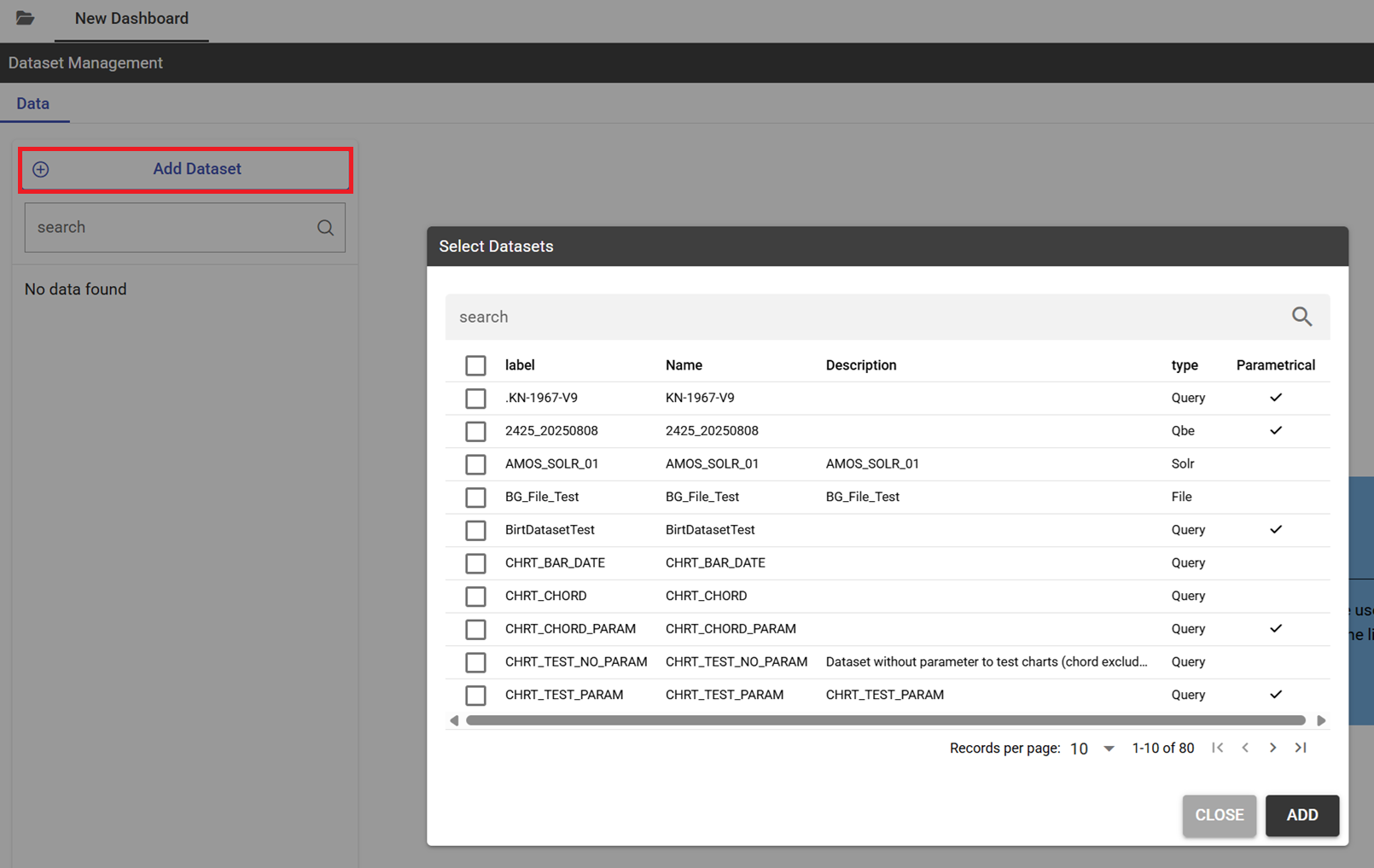

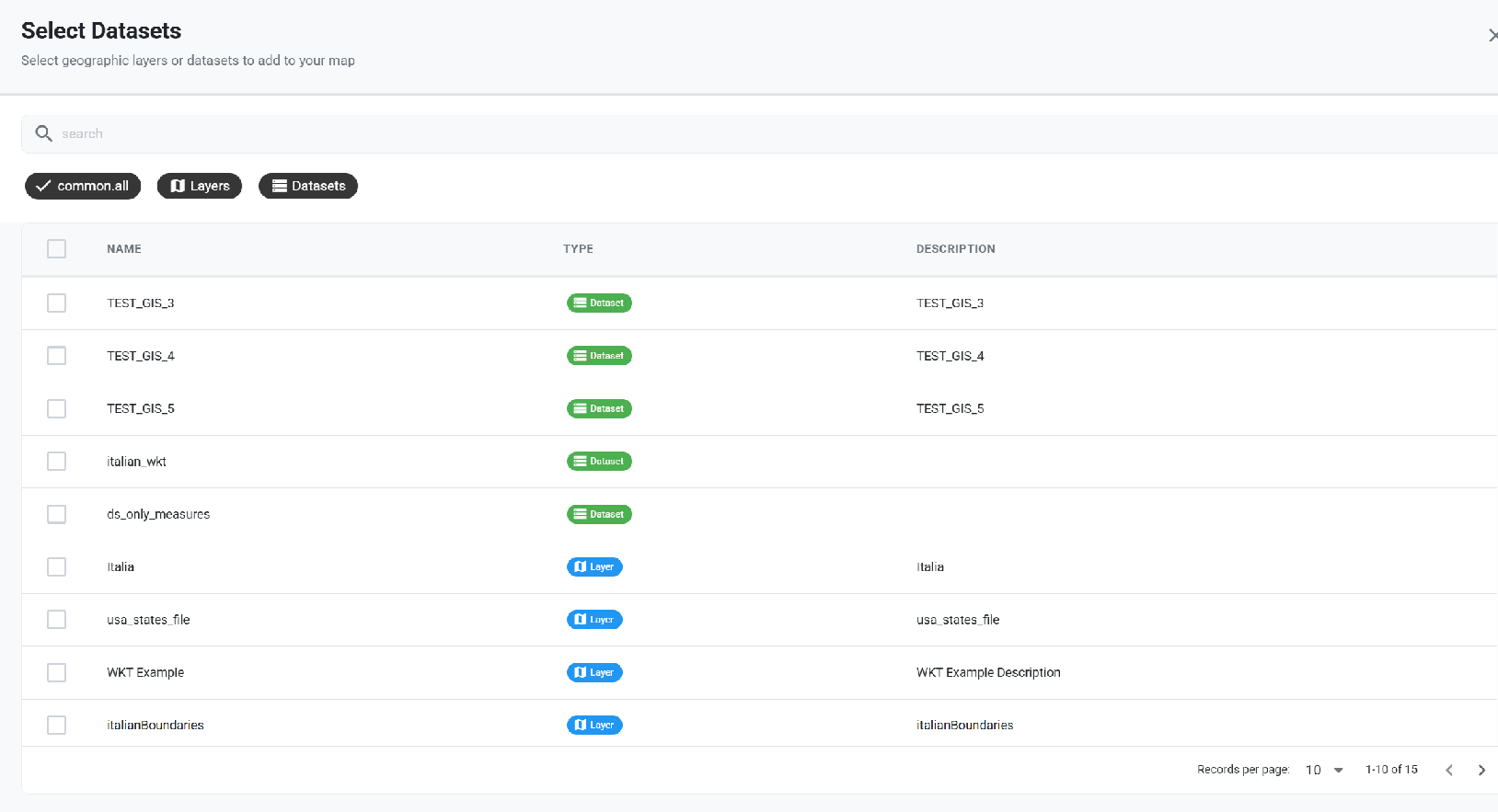

	Add new dataset	Opens the list of datasets to choose
	Add new widget	Opens the widget gallery from the sheet
	Add new widget	Opens the widget gallery from the bar

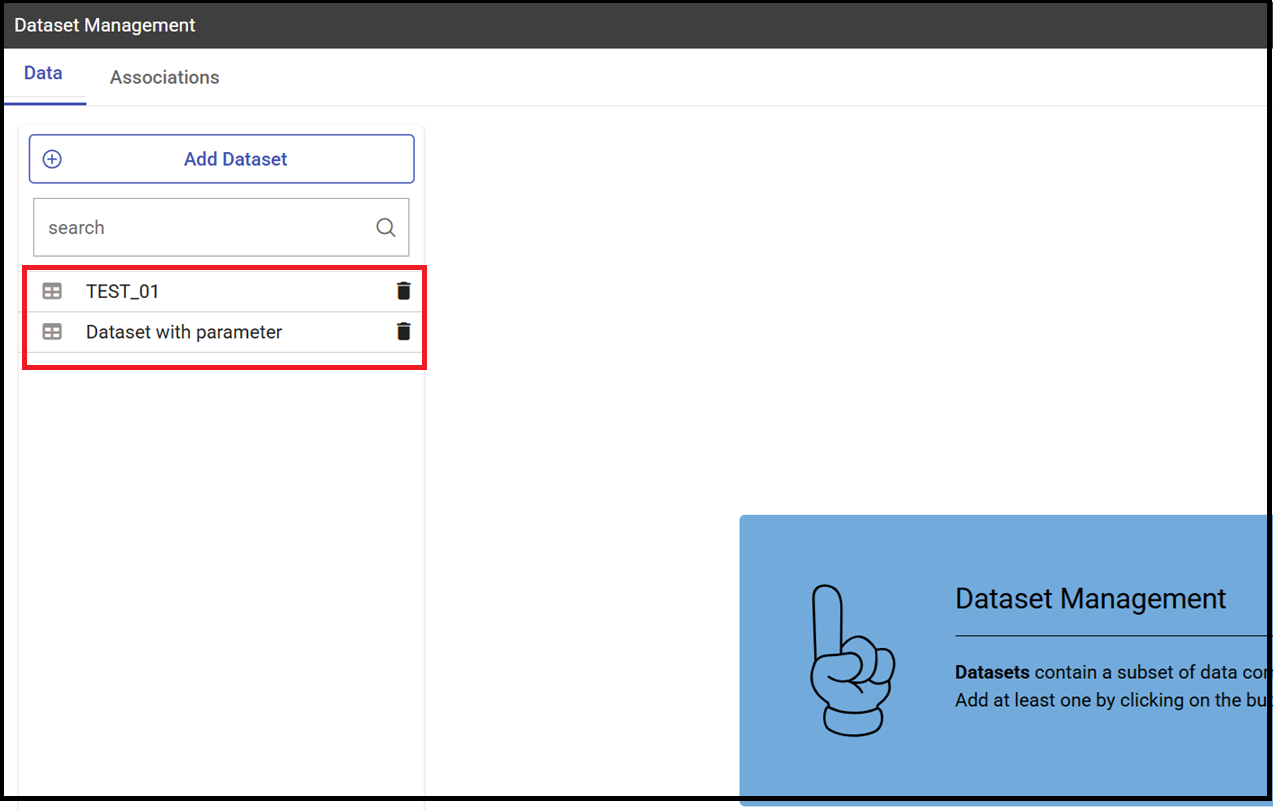

	Data set Mgmt	Opens the dataset mgmt window from the bar
	Save dashboard	Saves the dashboard

The below image shows an example of dashboard.

Widgets Types

As seen in the above table, the addition of a widget can be done either through the icon displayed from the sheet of a dashboard or from the appropriate button appearing in the upper right bar. When clicking a palette containing the entire range of available widgets will be shown. Simply click the desired one for popping up the widget editor. A widget’s editor normally has two sections:

• Data, to associate datasets to the dashboard (this section is not available i.e. for the Image and Map widgets)

• Settings, containing a list of properties varying from one widget to another

The below table shows an example of how the Data and the Settings sections appear for a Text widget. In case of i.e. an Image widget, the Settings section will contain the Gallery property that does not belong to the Text widget.

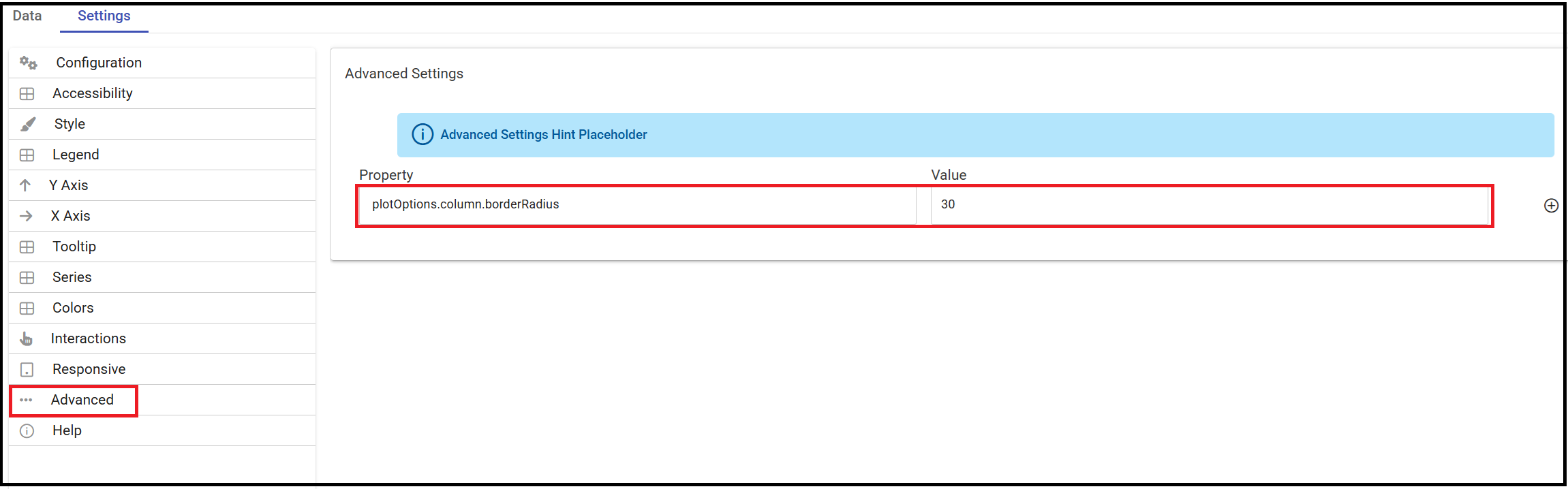

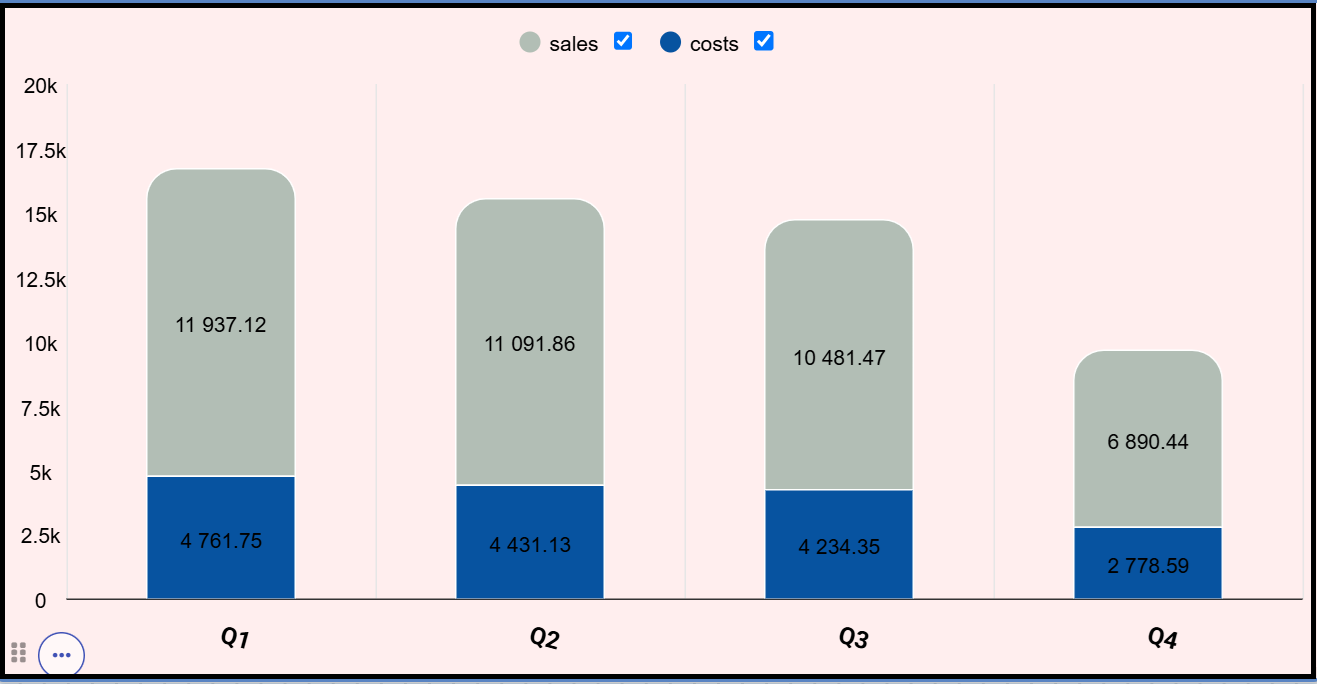

Below a brief description of the usefulness of some of the properties listed in the Settings section.

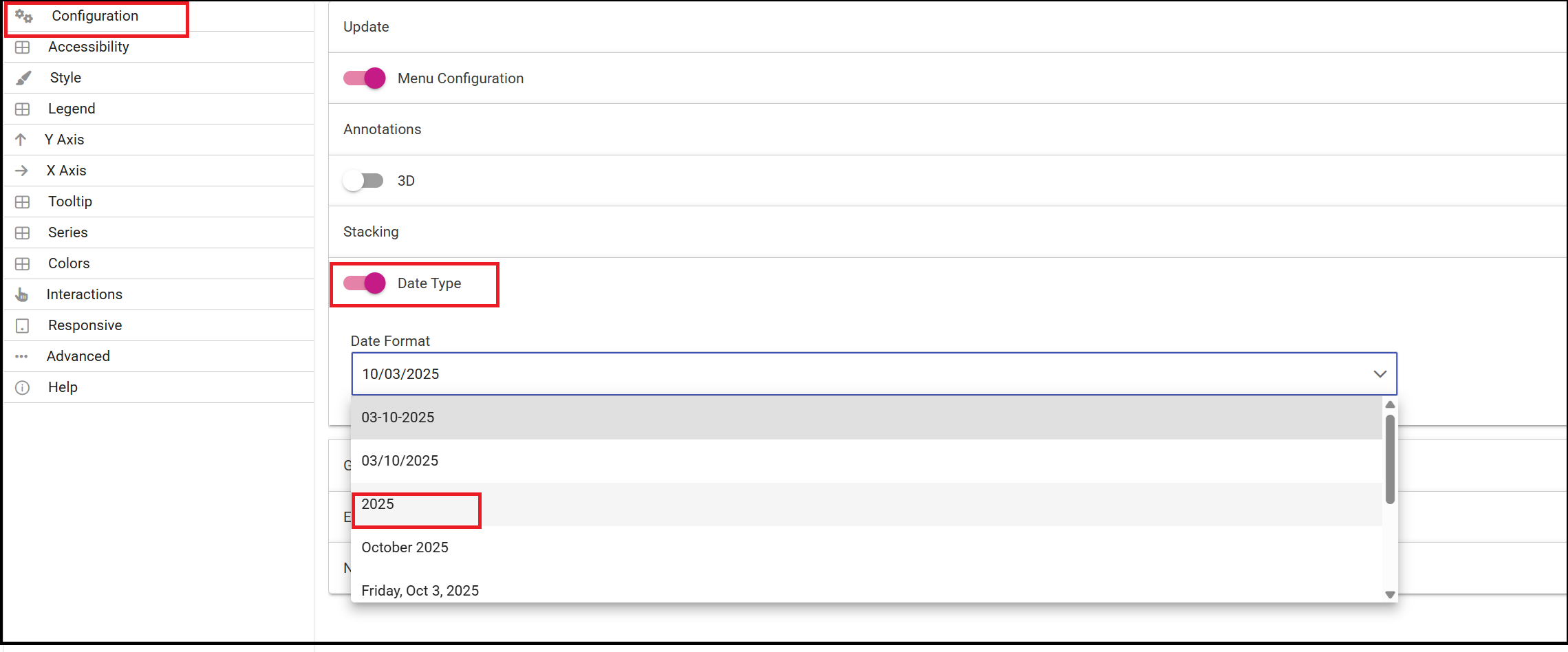

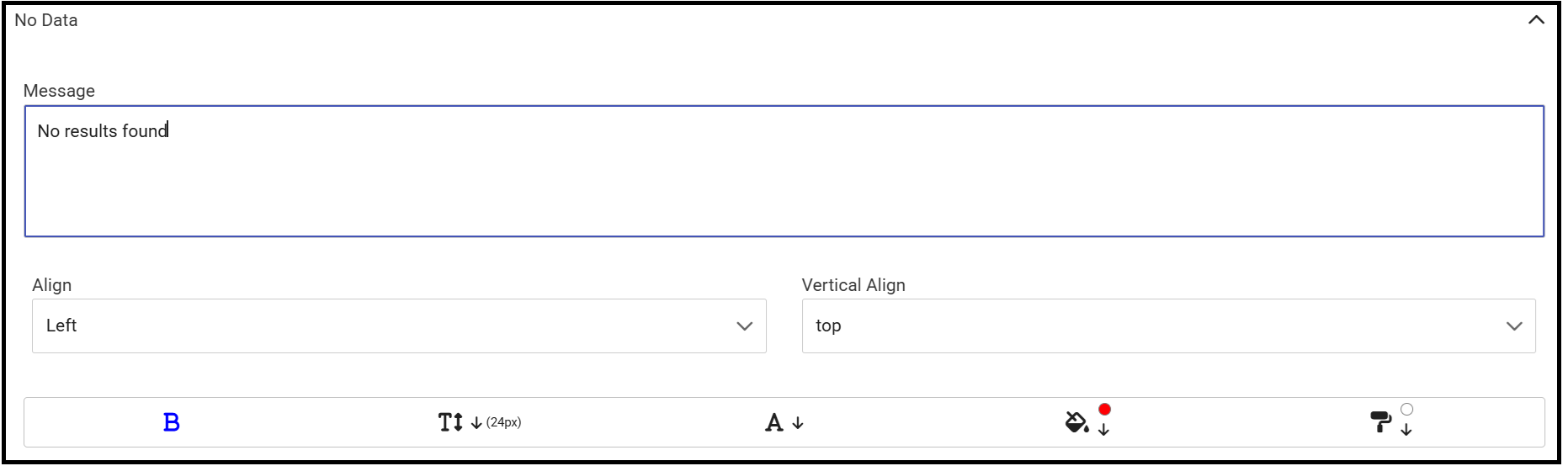

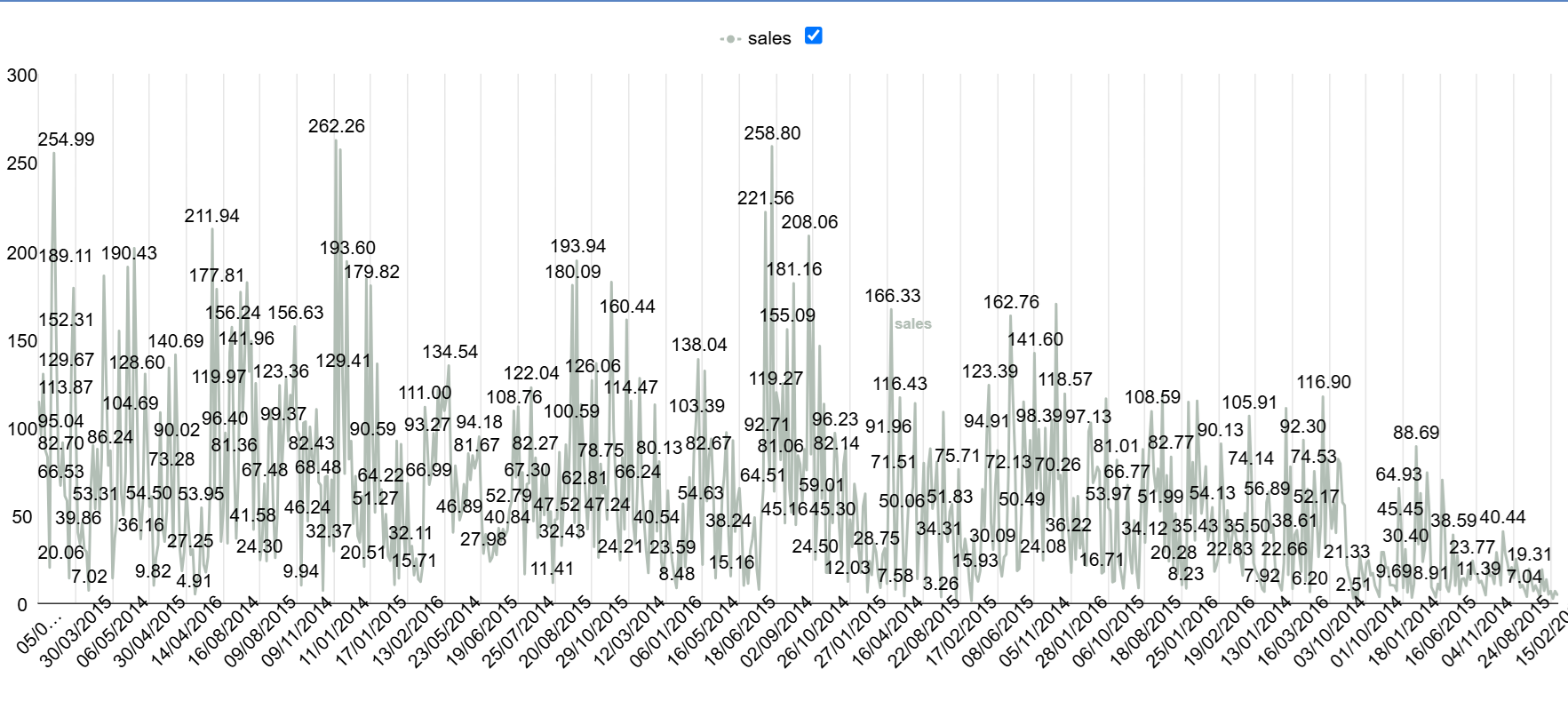

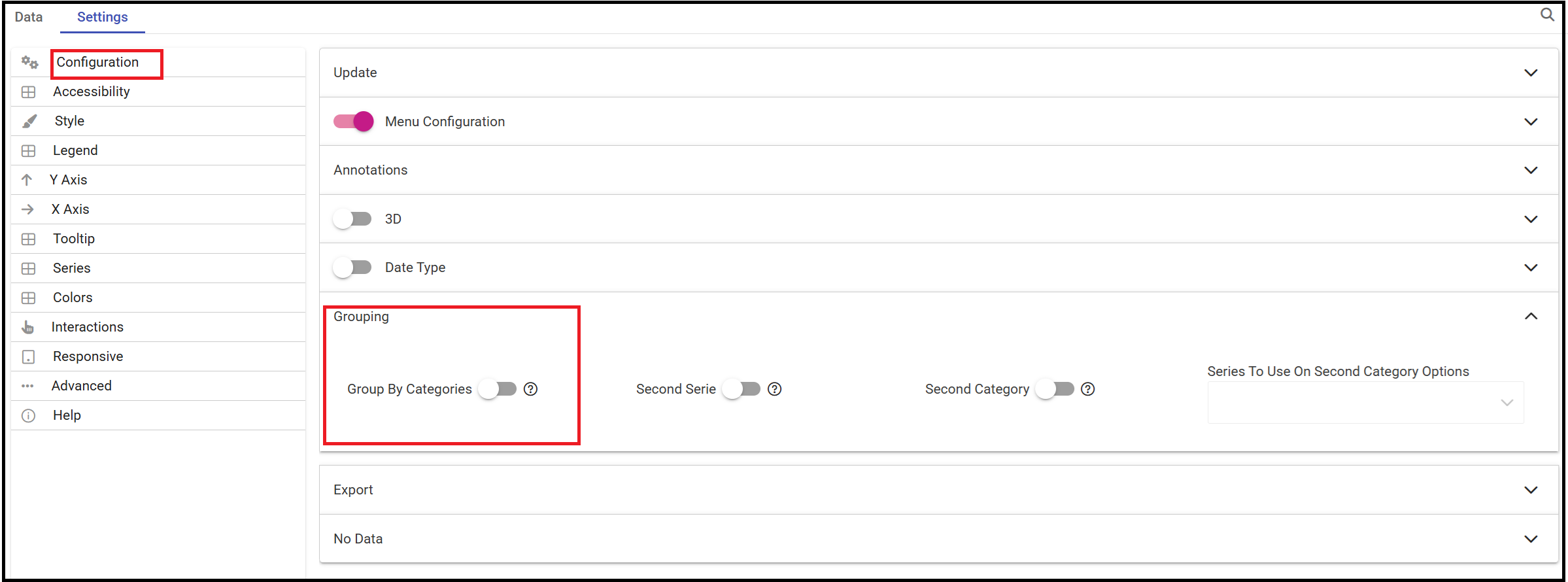

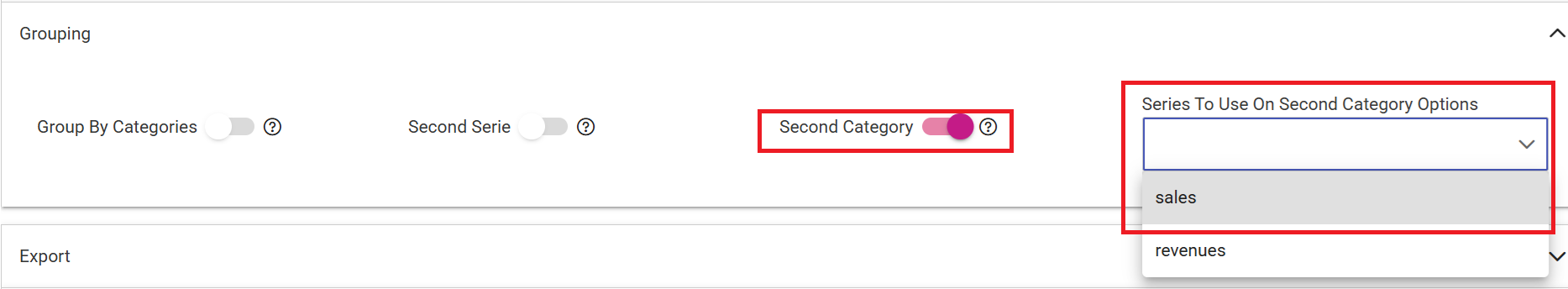

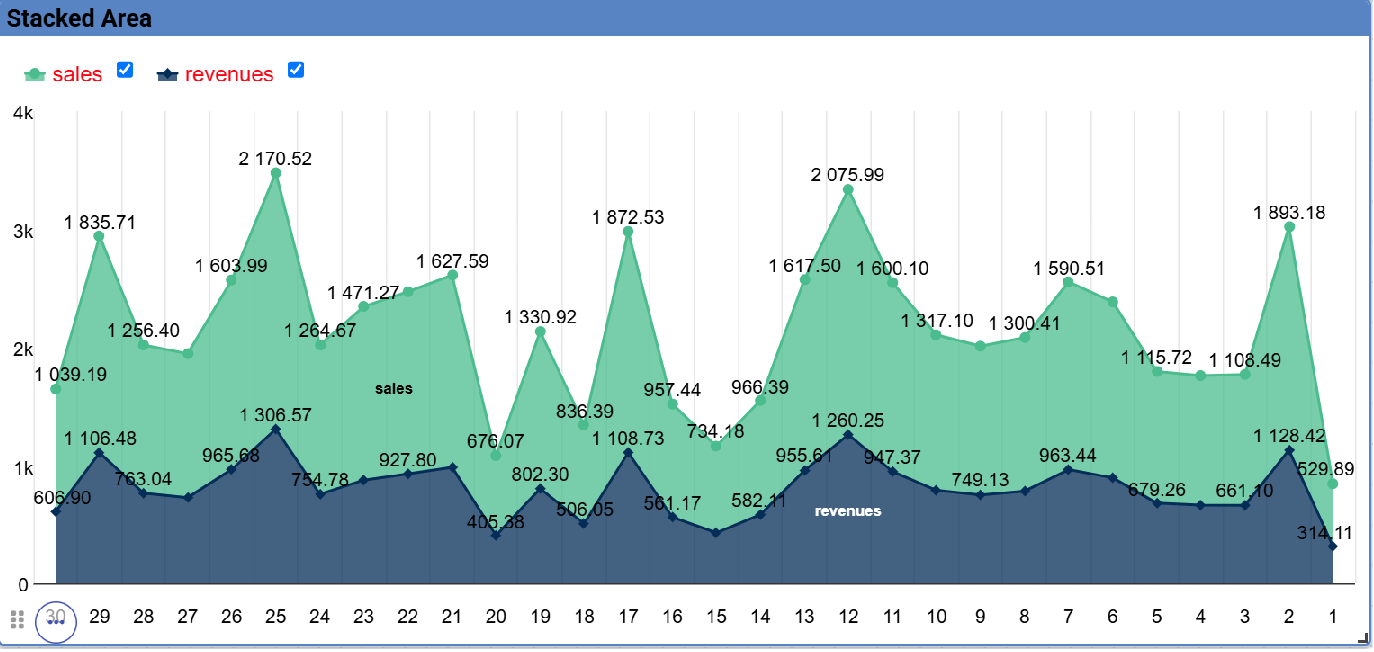

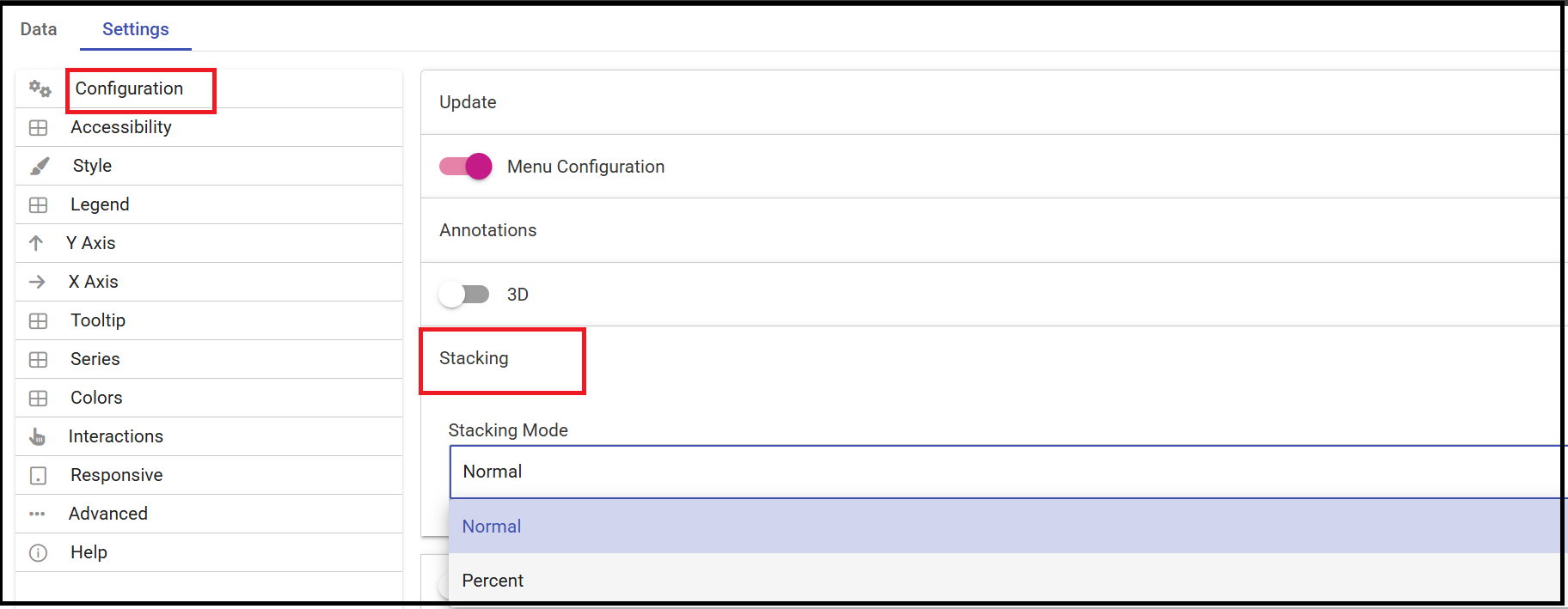

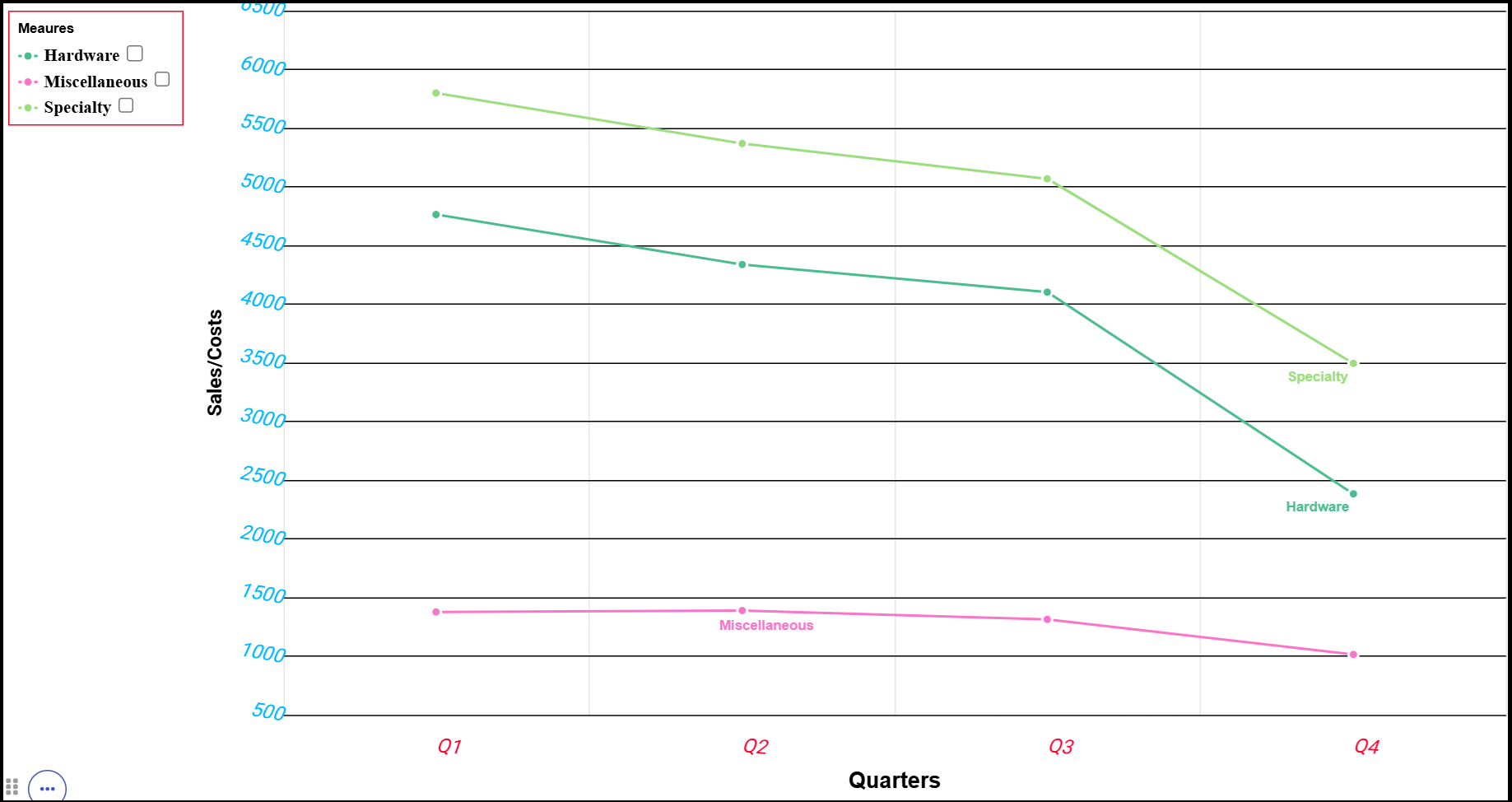

• Configuration, to manage date format, annotations, the text message when no data is retrieved

• Visualization, to pin columns, to set visibility conditions on columns, to show columns as text or icon, to show totals

• Legend, to show aliases for measures

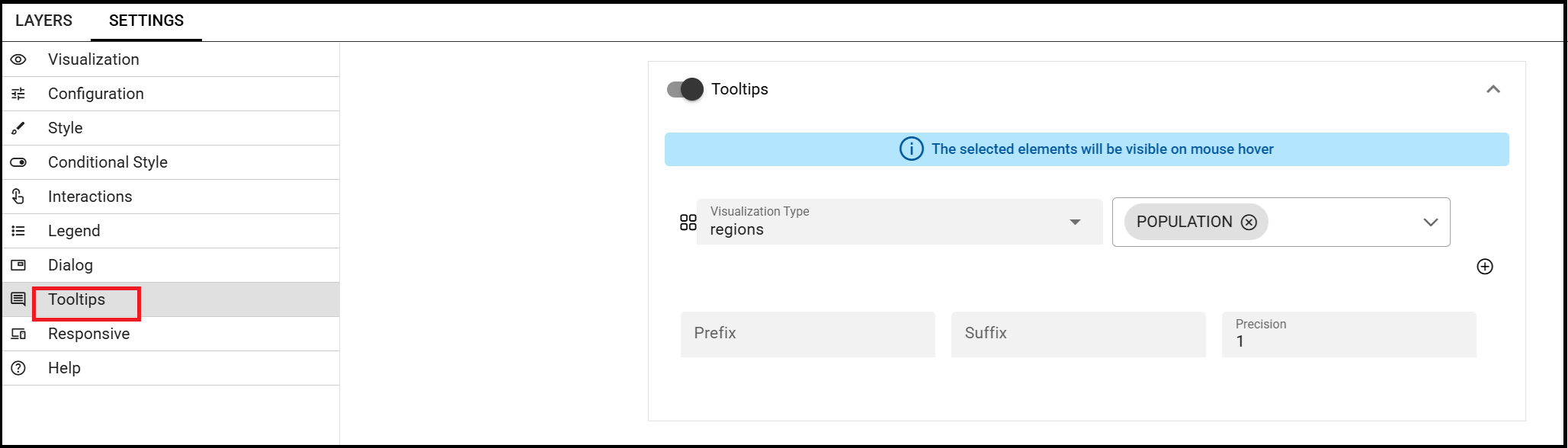

• Tooltips, to apply visualizazion styles to the hover text

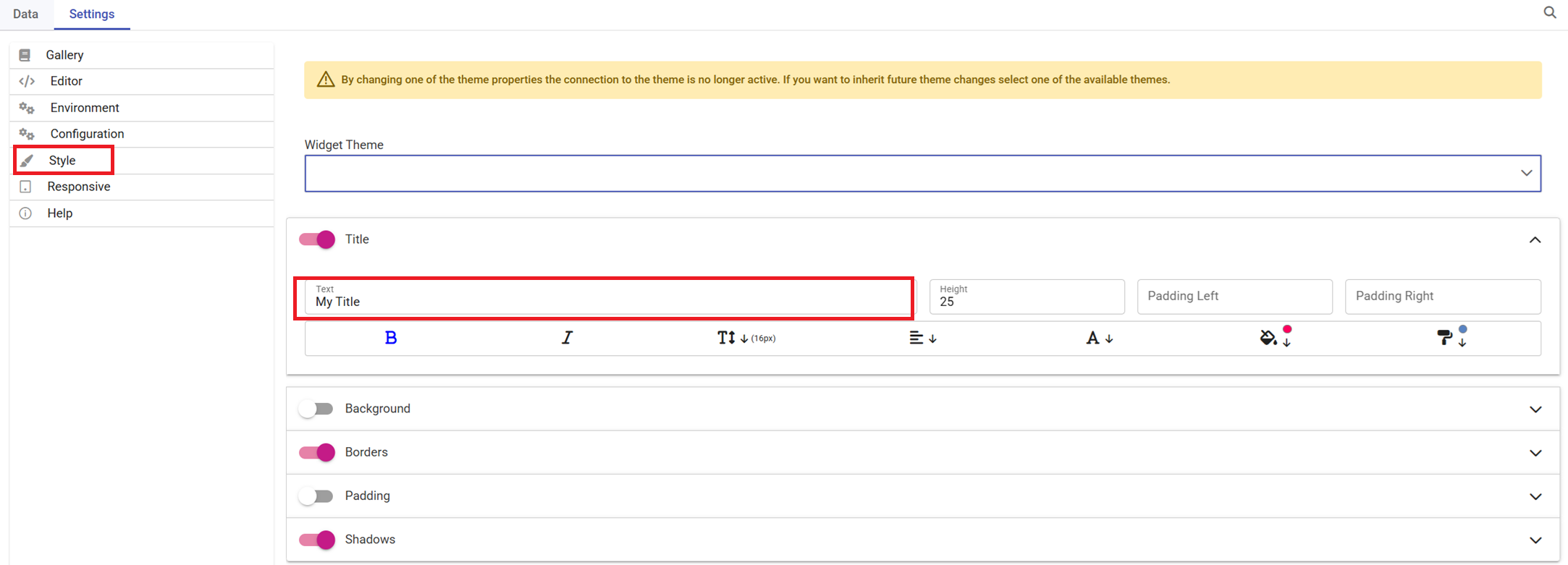

• Style, to define visualization styles such as font size, font family, background

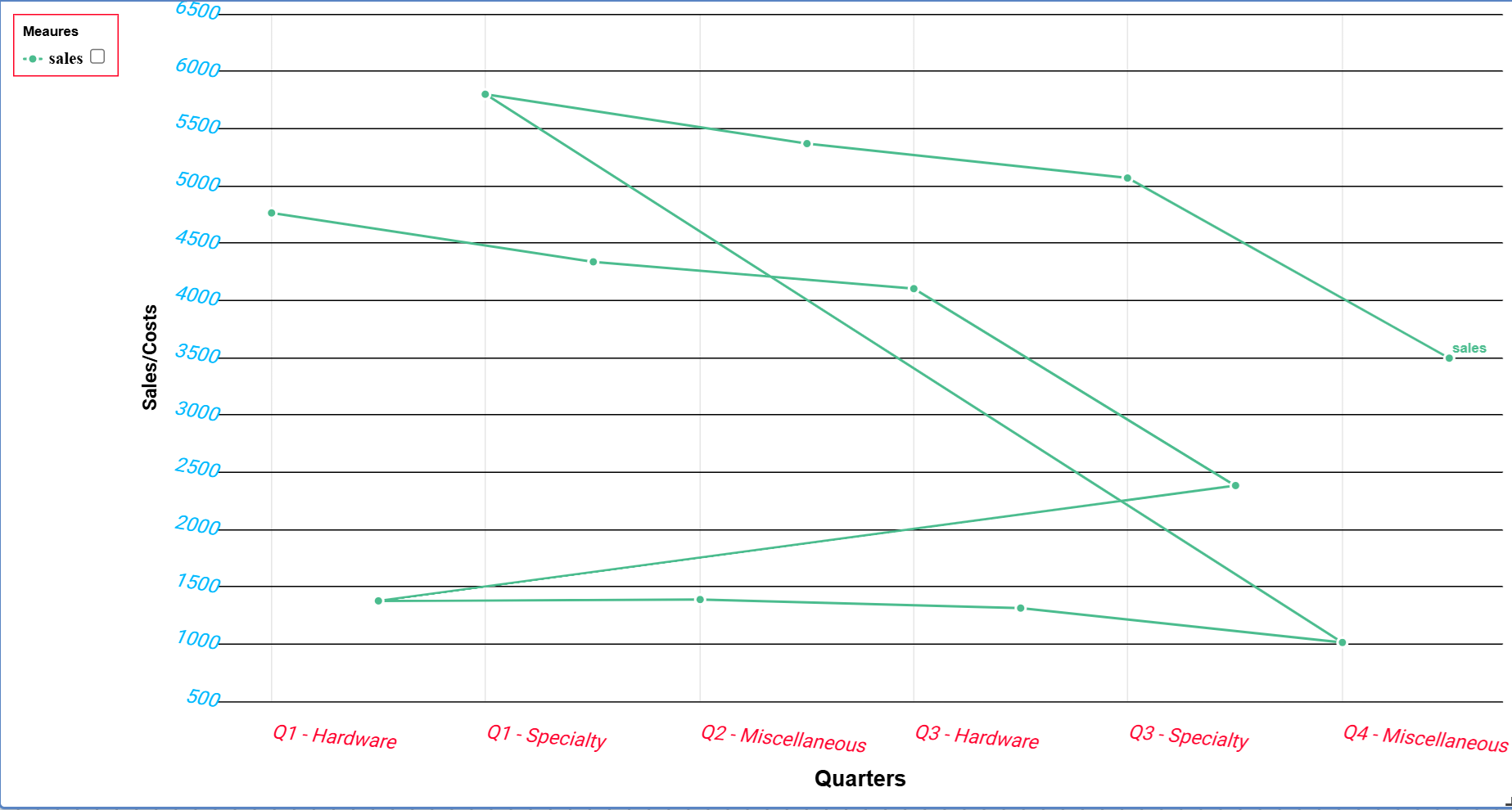

• X-axis, to manage properties related to the X axis as title, position, rotation, etc

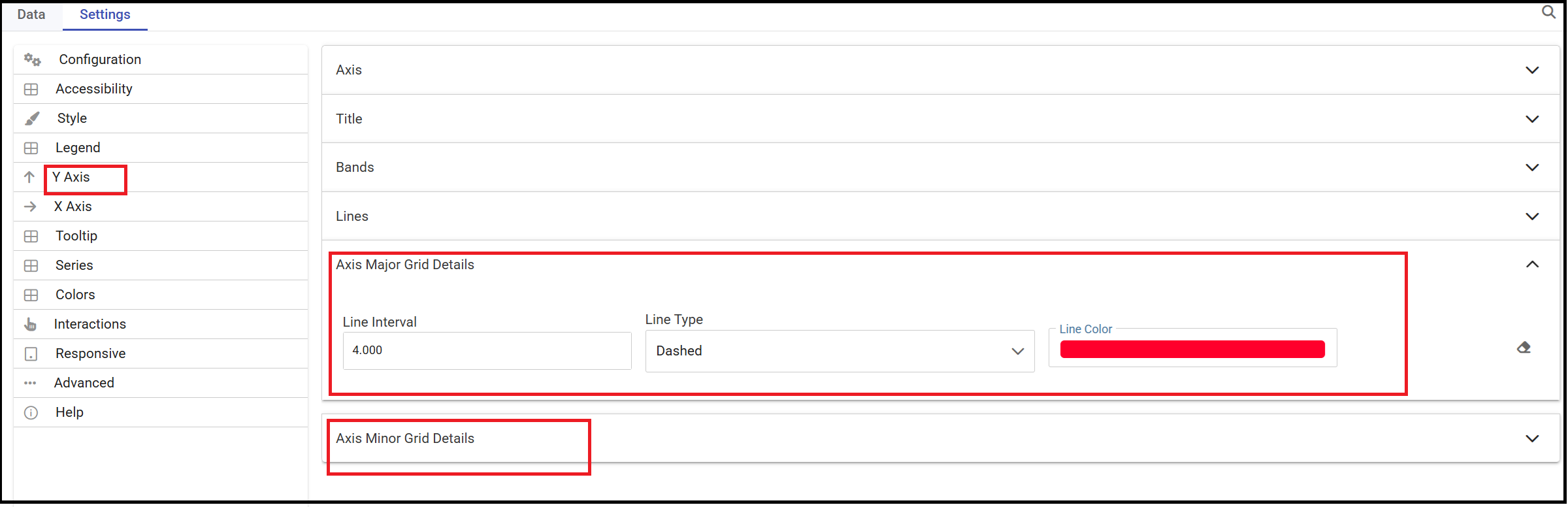

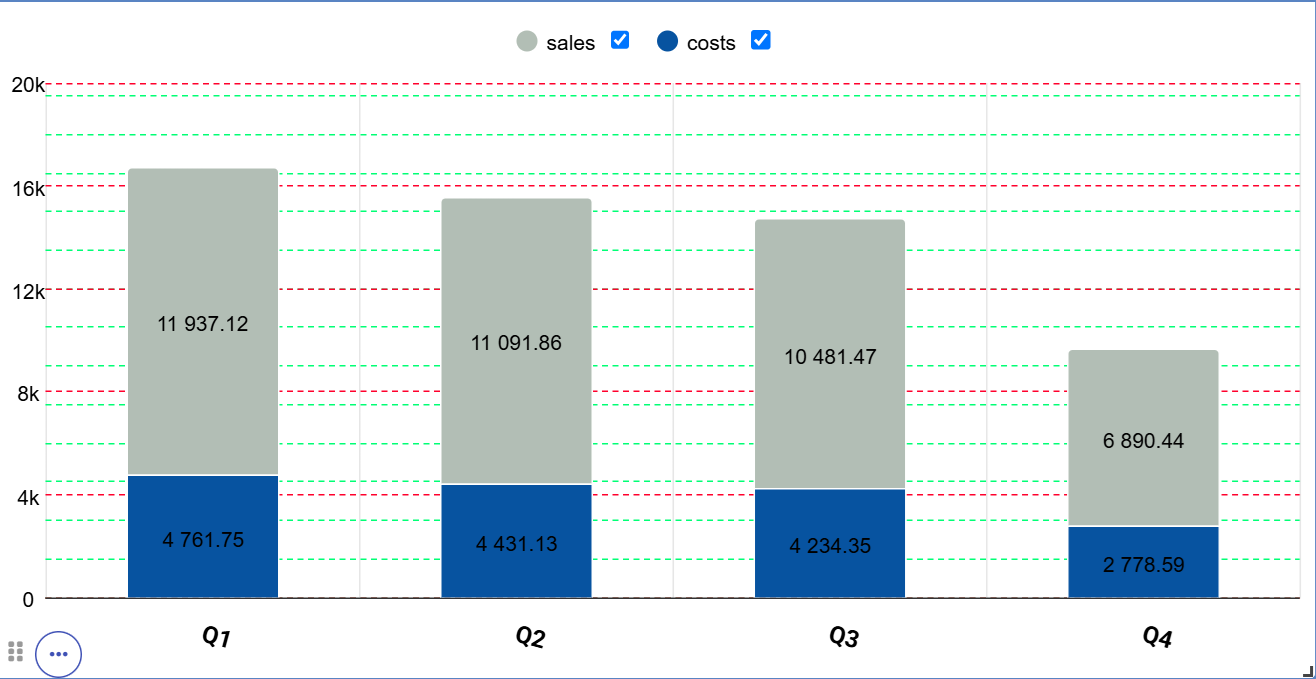

• Y-axis, to manage properties related to the Y axis as title, position, rotation, etc

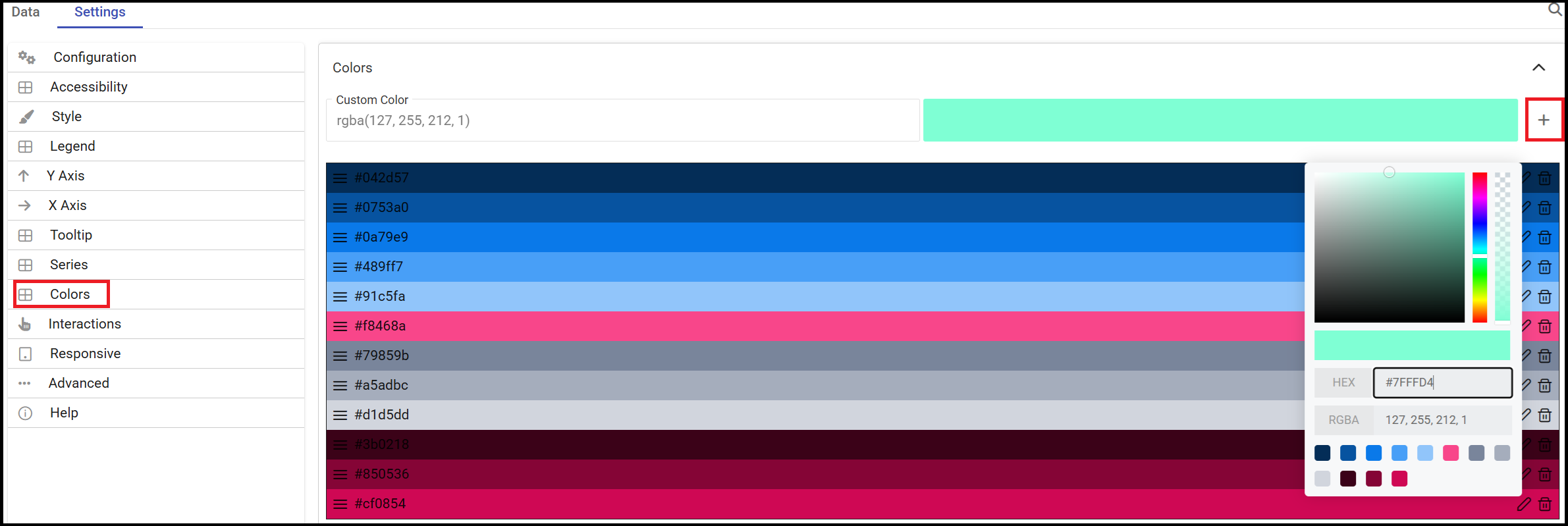

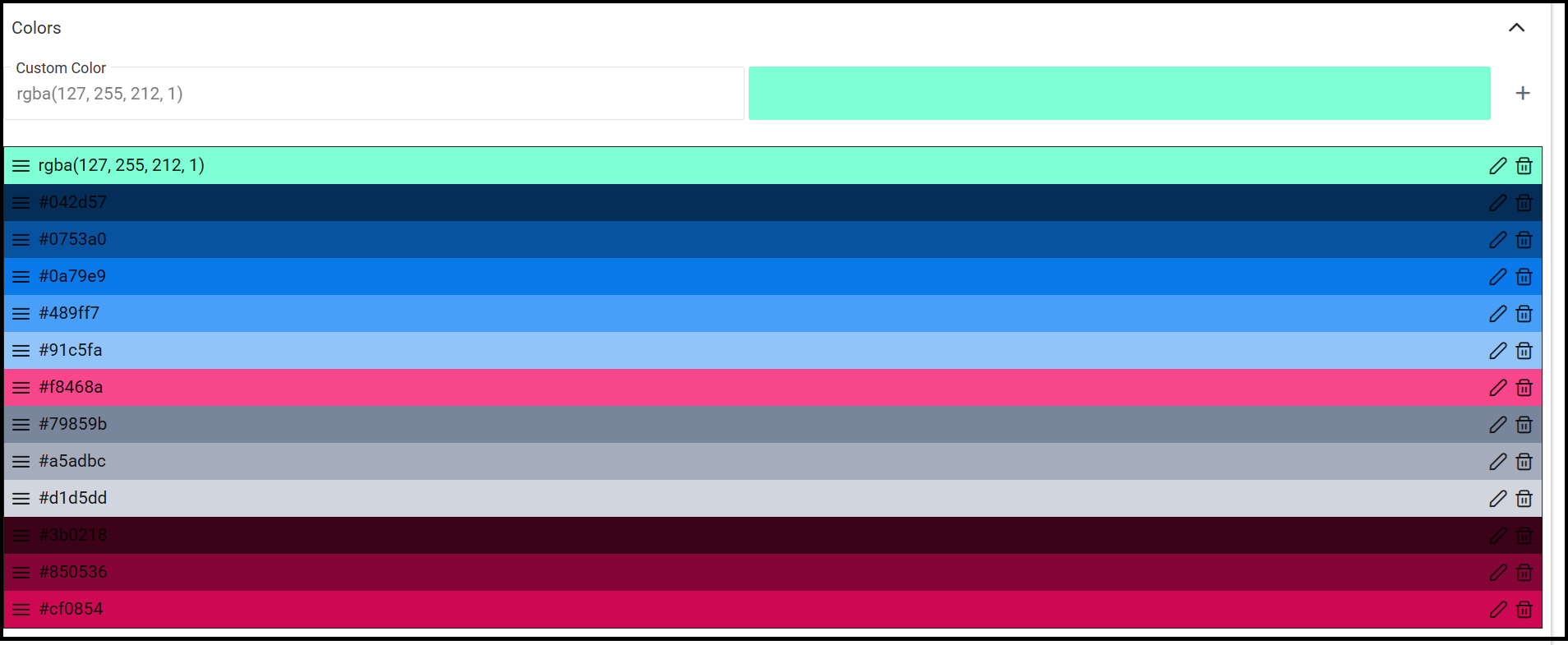

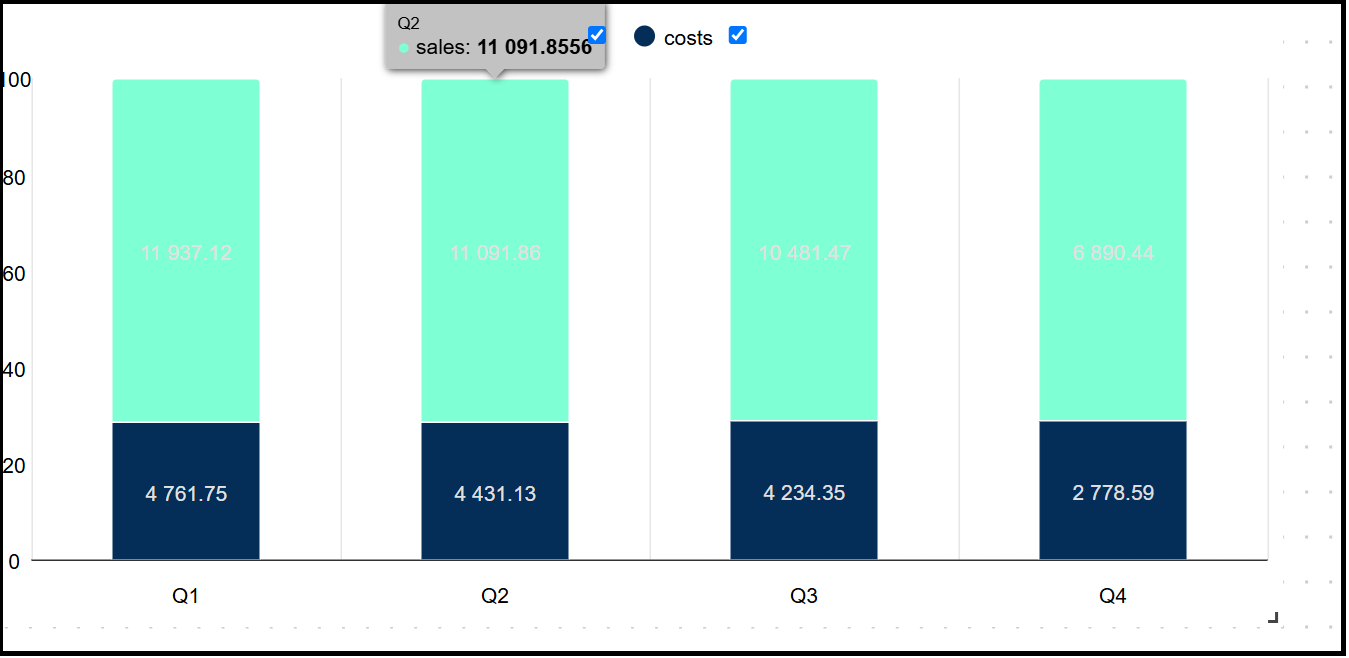

• Colors, to manage the palette of colors

• Interactions, to manage cross navigations, links, drill-downs, etc

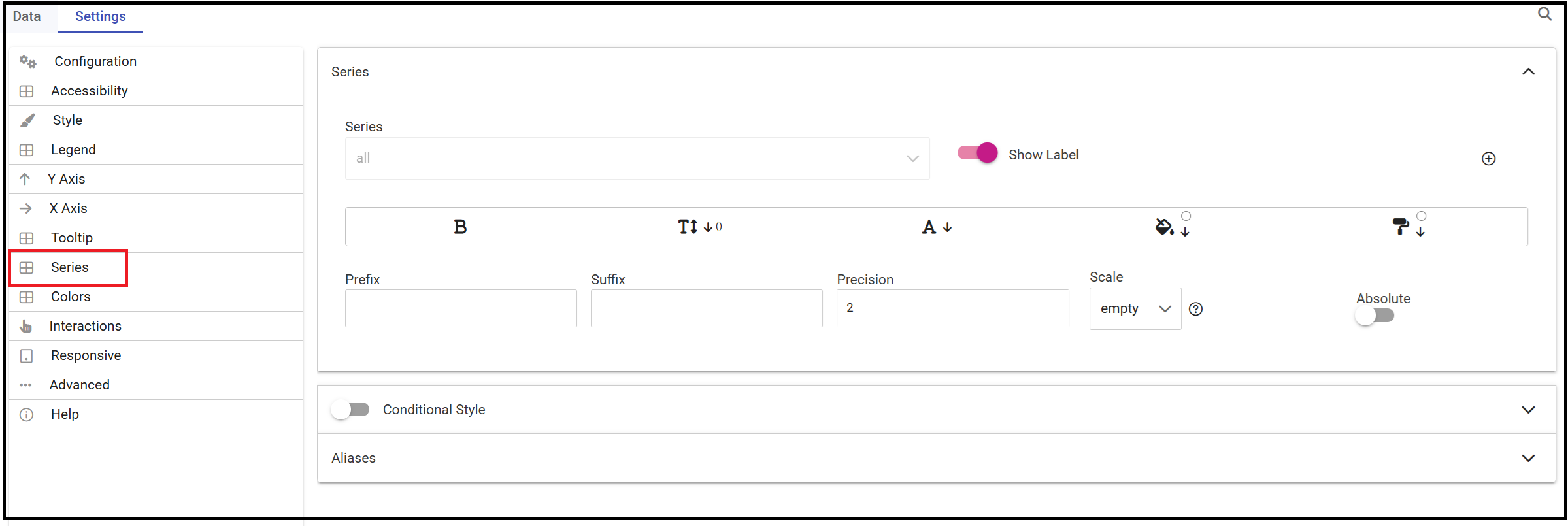

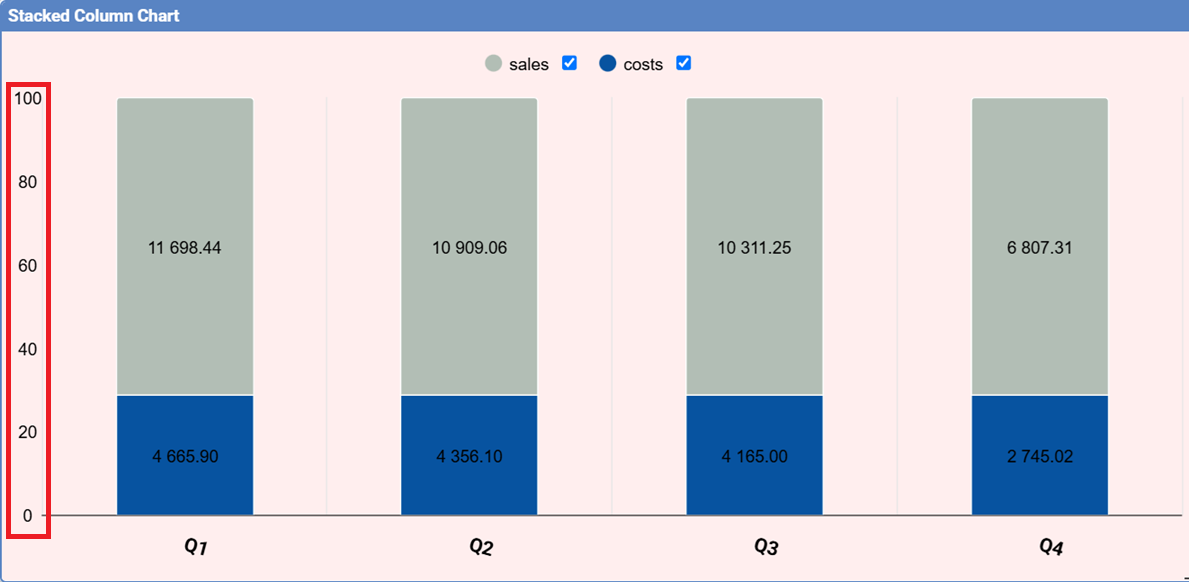

• Series, to manage format styles related to the values of the serie(s)

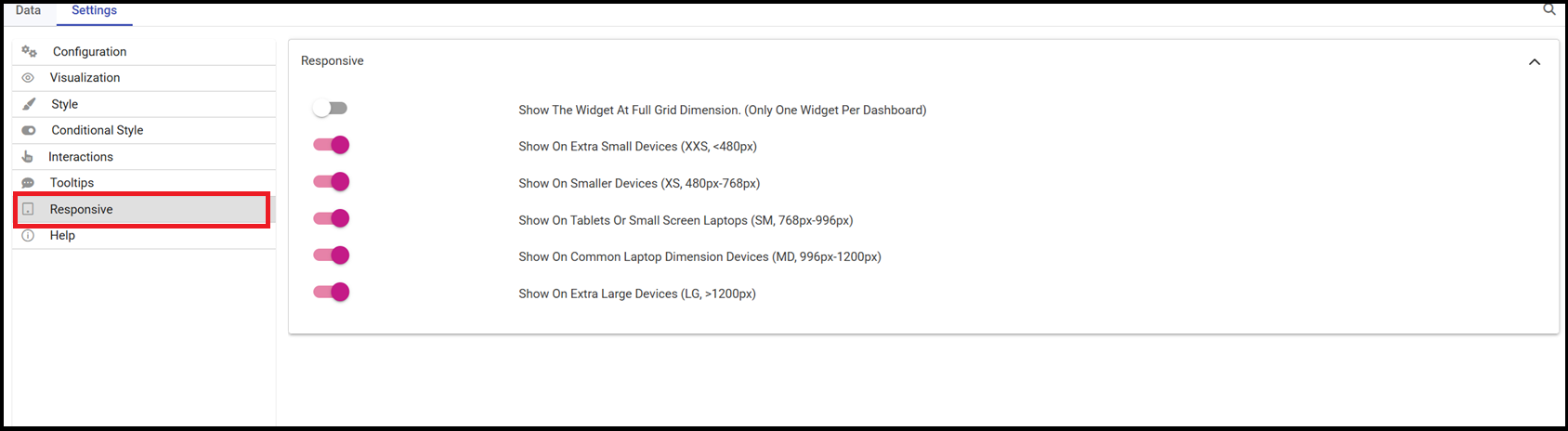

• Responsive, to manage the wisualization of your widgets on different devices such as tablets, mobiles, small and large devices

• Help, to add additional explanation for a specific widget i.e. by means of an icon opening a pop up that shows some information

Important

After changing whatever property of the Settings section remember always to press Save to apply changes to the widget. When all properties have been set up a further Save action will be necessary to permanently save the widget (dashboard) in Knowage.

Below an example of Help applied on a widget.

Text widget

By clicking the Text Widget icon you can add text to your dashboard. The widget editor opens showing the two sections formerly introduced. Using the Data section it is possible to associate dataset values to the text to show real time values at each execution. You can drag a single column into the Selected Columns area or just all of them by using the arrow next to the Add Column button.

Text Widget Data Editor

Text Widget Settings Editor

The Editor property allows typing the desired text. From the [] placeholder menu the item Columns Data makes available the dataset column(s) previously selected as shown in the below image.

Inserting a dataset column in the text editor

Image widget

By clicking on the Image Widget icon you can add an image to the dashboard. You can both pick up a previous image from the Gallery or upload a new one by clicking on the Upload button as show in the below image.

Inserting an image

The Style setting allows to handle the properties styles for the image such as Title, Background, Borders, Padding and Shadows.

Image styles

Chart widget

As previously mentioned the new dashboard comes with an enriched gallery of charts. That means that in addition to those charts used for creating the old cockpit:

• Bar

• Line

• Pie

• Sunburst

• Wordcloud

• Treemap

• Parallel

• Radar

• Scatter

• Heatmap

• Chord

• Gauge

• Bubble

new ones are now available:

• Activity Gauge

• Dumbbell

• Funnel

• Packed Bubble

• Pictorial

• Sankey

• Scatter Jitter

• Stream

• Waterfall

Below the general steps to be followed to insert a chart. After selecting the dataset and clicking the Add widget icon the chart gallery opens to pick up the desired chart to draw. Once a chart has been selected The Data section opens. Here it is possible to drag and drop your column(s) into:

• the Dimension(s) area, for measures

• the Values area, for attributes.

Afterwards the user can keep on with the set up of the properties contained in the Settings section. This section could be different from one widget to another. The below image refers to a Funnel chart where the definition of both the measure(s) and the sttribute(s) is needed.

Not all charts need both information as if you refer to an Activity Gauge you only need to define the measure. See image below.

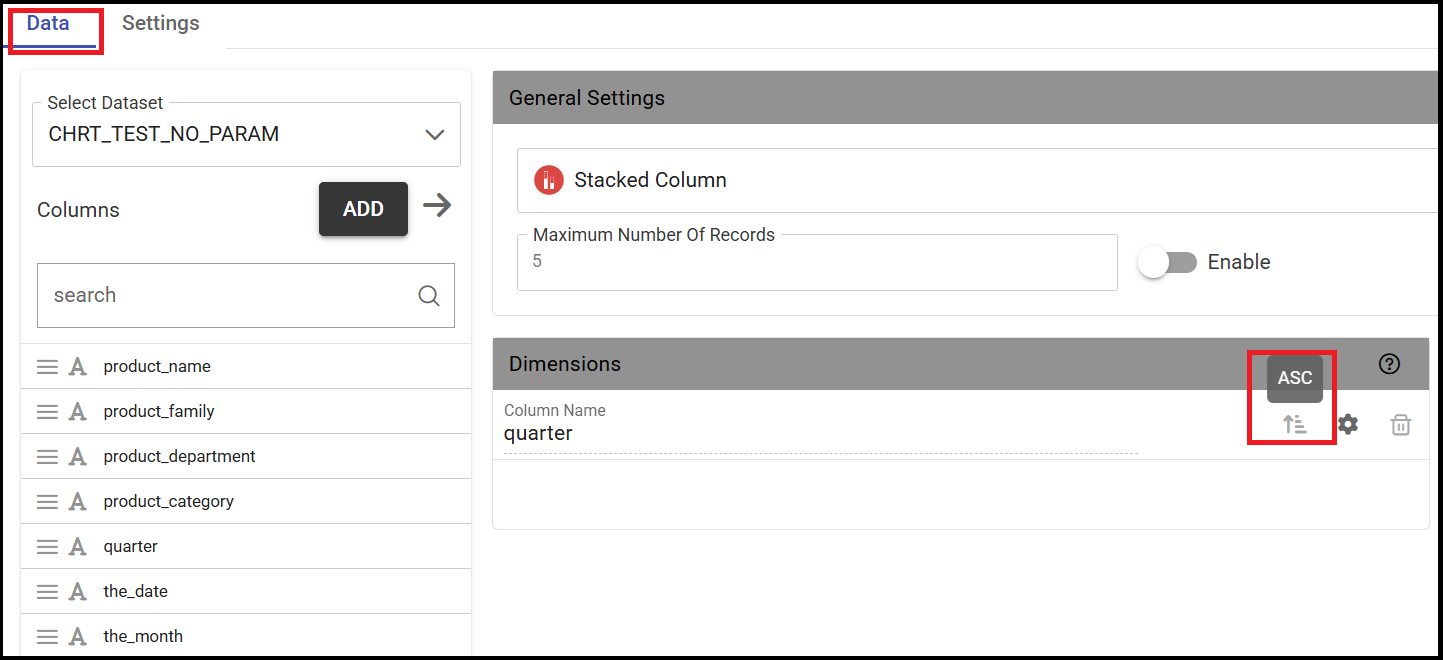

One important peculiarity to highlight is the possibility to change the type of chart once a selection has already been done. The drop down menu with your choice will still make available all the other charts as options to choose and in case the chart can be changed. See below picture.

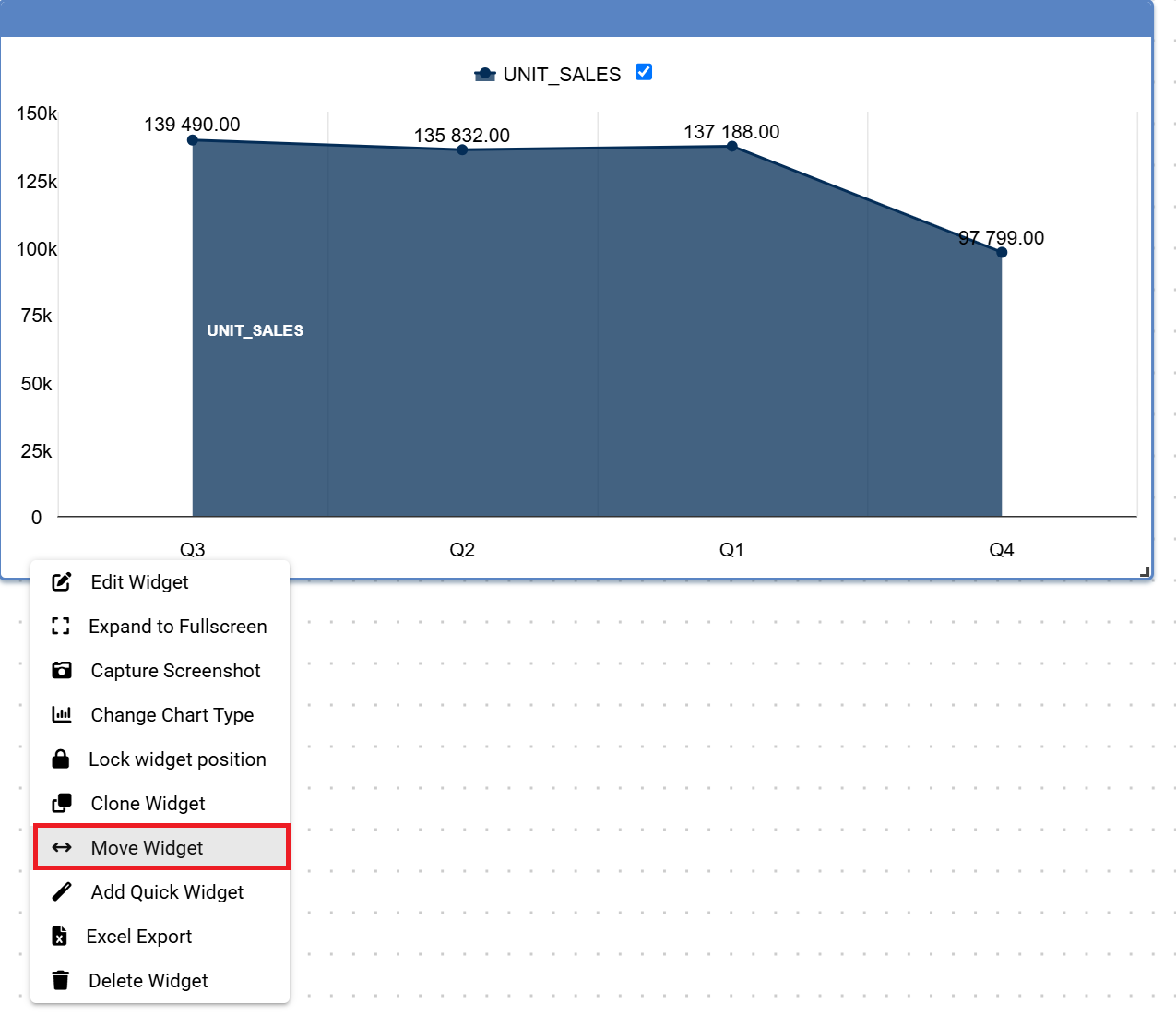

Once the chart has been inserted in the sheet of the dashboard, a three dots icon in the lower left part of the widget the displays a menu with the list of possible actions. See below image.

Menu on a chart

The chart can be resized just drugging the little corner in the lower right part of the chart.

Another functionality really useful is the preview of the graph just using the magnifying glass located at the upper right corner for each property of the Settings section. This means that saving the graph is not necessary to see how it looks like as changes can be seen as they are applied. See below image.

Preview functionality for a chart

A chart can simply be moved in a dashboard just dragging it inside the whole sheet. This functionality is available for all widgets. See below image.

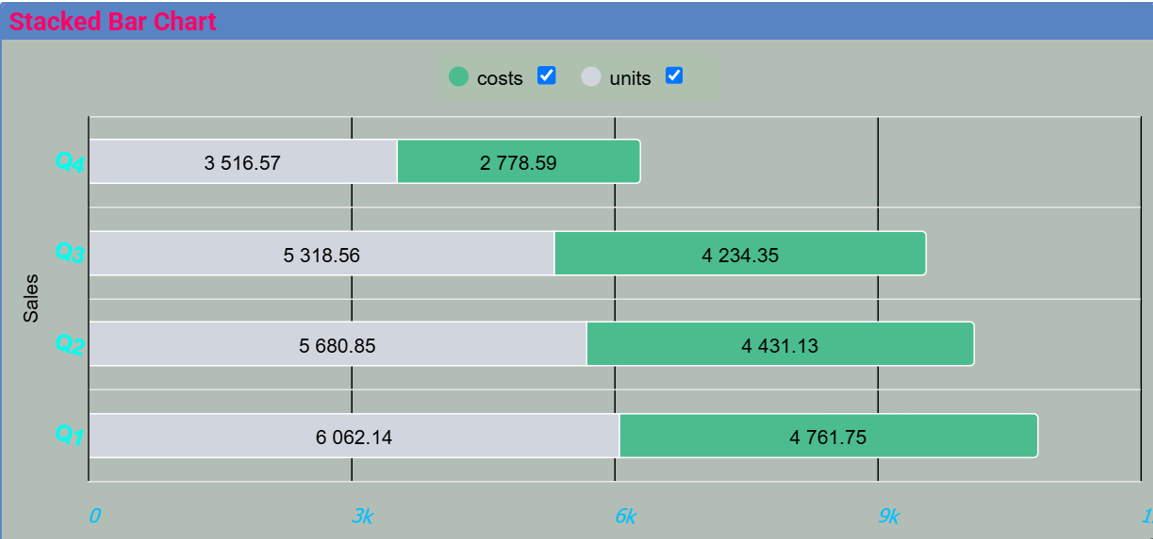

The Bar chart allows a method of displaying data with categories represented by rectangles (or groups) horizontally oriented.

An example below.

Bar chart example

Column

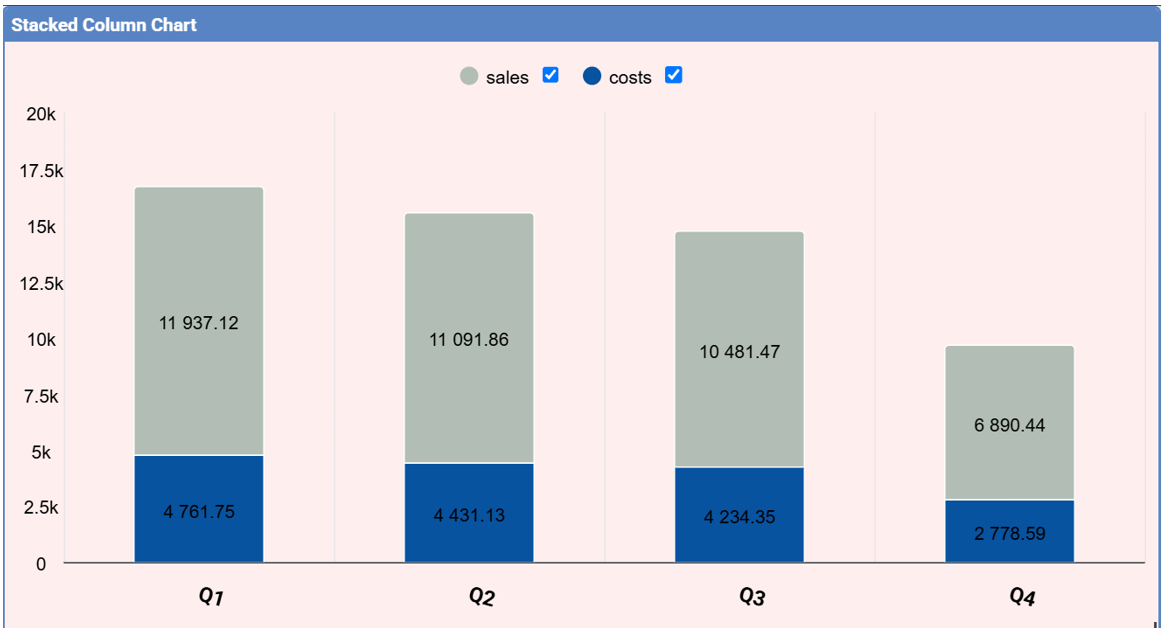

The Column chart is like a Bar chart with vertical orientation. How to define measures and attributes is shown below

Column chart - measures and attributes

The above image shows the Maximum number of records property enabled and set to 3. In this case only three bars are shown.

Column chart example

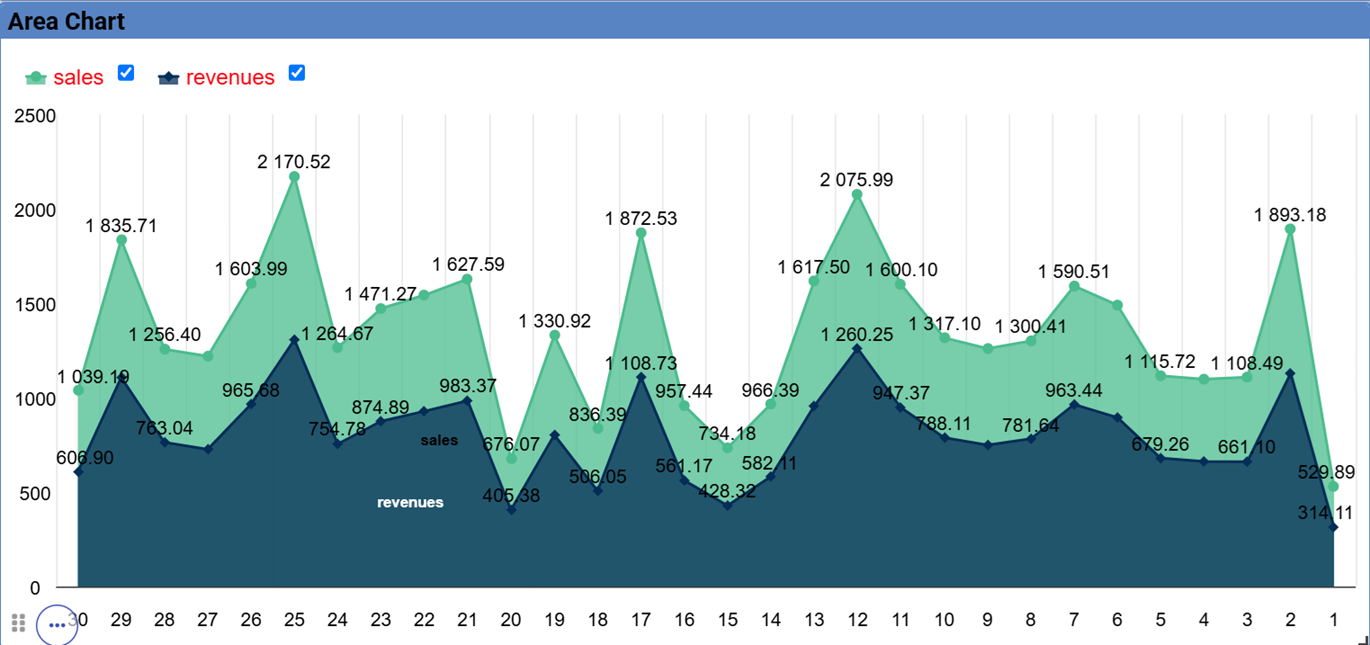

Line The Line chart uses points connected by line segments from left to right to show how data changes. An example below.

Line chart example

Pie

A pie chart helps organize and show data in a circular form as a percentage of a whole.

Pie chart example

Sunburst

The sunburst chart is a graph with a radial layout which depicts the hierarchical structure of data displaying a set of concentric rings. The circle in the center represents the root node, with the hierarchy moving outward from the center. The slices in the external rings represent the children of the slice in the inner circle which means they lie within the angular sweep of the inner circle. The area of each slice corresponds to the value of the node. Even if sunburst charts are not efficient space-wise, they enable users to represent hierarchies in a more immediate and fascinating way.

To create a sunburst chart select at least two attributes describing the hierarchy and just one measure representing the width of the slices. An example of dataset for the sunburst chart is shown below.

Sunburst chart - defining attributes and measure

Example of dataset for the sunburst chart.

CATEGORY	SUBCATEGORY	UNIT
Baking Goods	Cooking Oil	349
Baking Goods	Sauces	109
Baking Goods	Spices	290
Baking Goods	Sugar	205
Bathroom Products	Conditioner	64
Bathroom Products	Mouthwash	159
Bathroom Products	Shampoo	254
Bathroom Products	Toilet Brushes	92
Bathroom Products	Toothbrushes	94

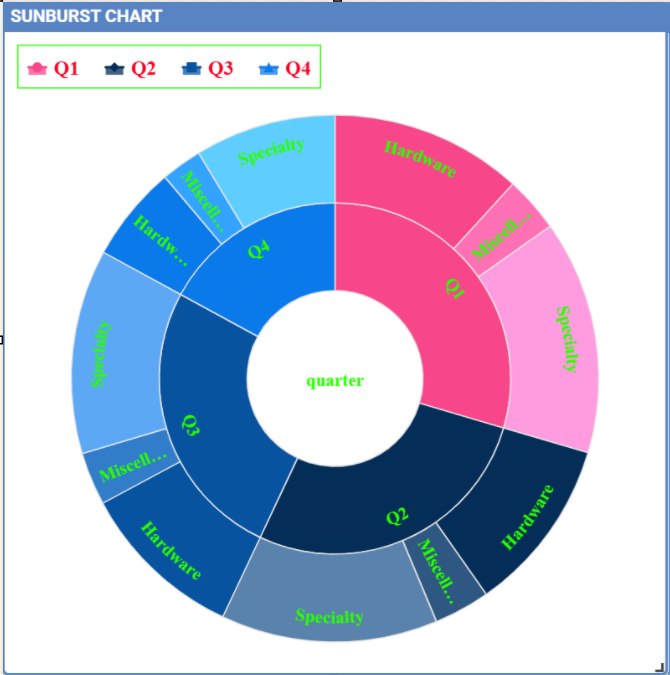

The below image shows an example of a sunburst chart using the dataset previously described.

From left to right: (a) Sunburst. (b) Sunburst category.(c) Sunburst subcategory.

Wordcloud

The Wordcloud chart allows you to quickly see which words appear more frequently in a bunch of text. Size and colors of the words depend on a specified weight of the measure.

To create the Workcloud chart exactly one attribute and one measure are needed. The below example highlights what happens if two attributes are dragged and dropped in the specific area. In this case an error is shown.

Workcloud chart - attributes and measures

Workcloud chart example

Chord

A Chord chart shows the relationship between two entities though your data. Data flows from one entity (start category) to a second entity (final category)

Chord chart - attributes and measures

Chord chart example

Parallel

The Parallel chart is a way to visualize high-dimensional geometry and multivarious data. The axes of a multidimensional space are represented by parallel lines, usually equally spaced-out, and a point of the space is represented by a broken line with vertices on the parallel axes. The position of the vertex on an axis correspond to the coordinate of the point in that axis.

To create a parallel chart select a dataset with at least one attribute and two columns with numerical values. You can find an interesting example of dataset in the next table where we display some of its rows.

Example of a dataset for a parallel chart.

ID	sepal_length	sepal_width	petal_length	petal_width	class
36	5.0	3.2	1.2	0.2	Iris-setosa
37	5.5	3.5	1.3	0.2	Iris-setosa
38	4.9	3.1	1.5	0.1	Iris-setosa
39	4.4	3.0	1.3	0.2	Iris-setosa
40	5.1	3.4	1.5	0.2	Iris-setosa
41	5.0	3.5	1.3	0.3	Iris-setosa
42	4.5	2.3	1.3	0.3	Iris-setosa
43	4.4	3.2	1.3	0.2	Iris-setosa
44	5.0	3.5	1.6	0.6	Iris-setosa
45	5.1	3.8	1.9	0.4	Iris-setosa
66	6.7	3.1	4.4	1.4	Iris-versicolor
67	5.6	3.0	4.5	1.5	Iris-versicolor
68	5.8	2.7	4.1	1.0	Iris-versicolor
69	6.2	2.2	4.5	1.5	Iris-versicolor
70	5.6	2.5	3.9	1.1	Iris-versicolor
71	5.9	3.2	4.8	1.8	Iris-versicolor
101	6.3	3.3	6.0	2.5	Iris-virginica
102	5.8	2.7	5.1	1.9	Iris-virginica
103	7.1	3.0	5.9	2.1	Iris-virginica
104	6.3	2.9	5.6	1.8	Iris-virginica
105	6.5	3.0	5.8	2.2	Iris-virginica
106	7.6	3.0	6.6	2.1	Iris-virginica
107	4.9	2.5	4.5	1.7	Iris-virginica
108	7.3	2.9	6.3	1.8	Iris-virginica

In this example three different classes of iris are studied. Combining the values of some sepal and petal width or lenght, it is possible to find out which class we are looking at. One side of the below image (part a) shows a parallel chart related to the previous dataset. The second side of the image (part b) shows thanks to selection, that all iris with petal length between 2,5 and 5.2 cm and petal width 0,9 and 1,5 cm belong to the iris-versicolor class.

From left to right: (a) Parallel. (b) Parallel chart selection.

To create this chart two attributes and one measure are needed.

Parallel chart - measures and attributes

Heatmap A Heatmap is a two-dimensional representation of data whose values are represented by colors. Heatmap chart uses a chromatic Cartesian coordinate system to represent a measure trend trough two categories.

Heatmap chart - measures and attributes

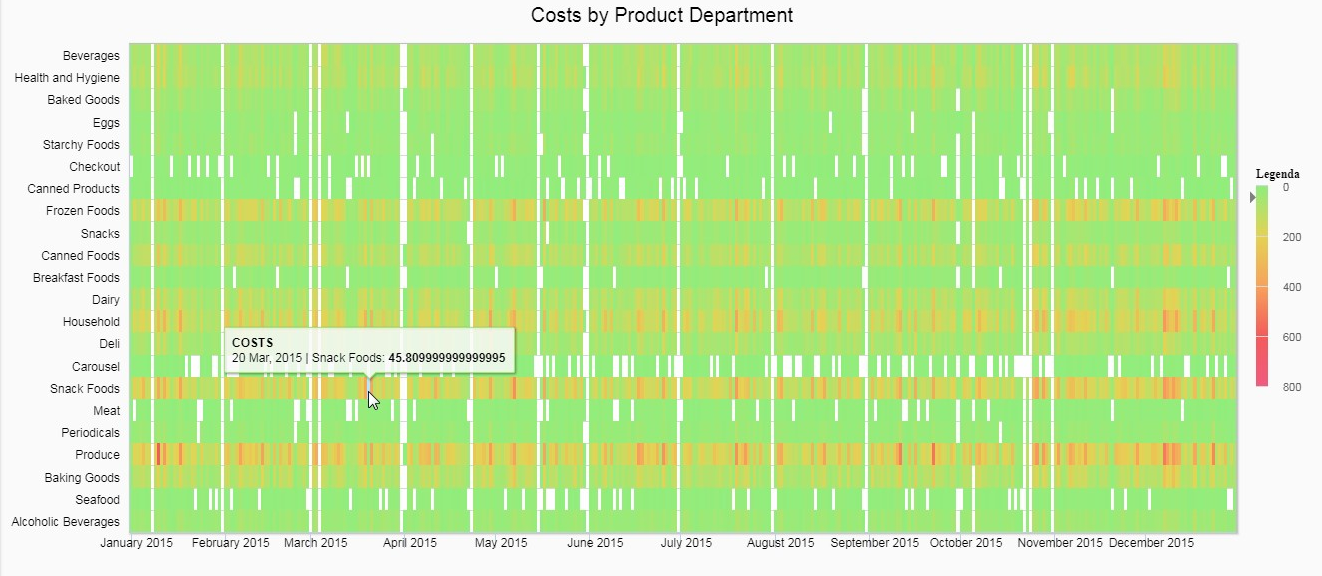

Heatmap chart example

Radar

A Radar chart is a two-dimensional chart showing more series of values over a varied number of variables having its own axis. All axes are joined in the center of the graph.

To plot this graph at least one attribute and one measure are needed.

Radar chart - defining attributes and measures

Radar chart example

Treemap

The Treemap is a graphical representation of hierarchical data displayed as nested rectangles. Each branch of the tree is given by a rectangle, which is tiled with smaller rectangles representing sub-branches. The area of the rectangles is proportional to a measure specified by a numerical attribute. The treemap is usefull to display a large amount of hierarchical data in a small space. By clicking the Add widget button pick up Chart and then the Treemap from the gallery. Once a dataset has been selected at least two attributes into the X-axis panel and one measure are needed. Press Save to apply the changes. See below image.

Treemap chart - attributes and measures

The order of the attributes in the X-axis panel should reflect the order of the attributes in the hierarchy starting from the root to the top.

In Figure below an example of a Treemap chart

From left to right: (a) Treemap. (b) Treemap sub-branches.

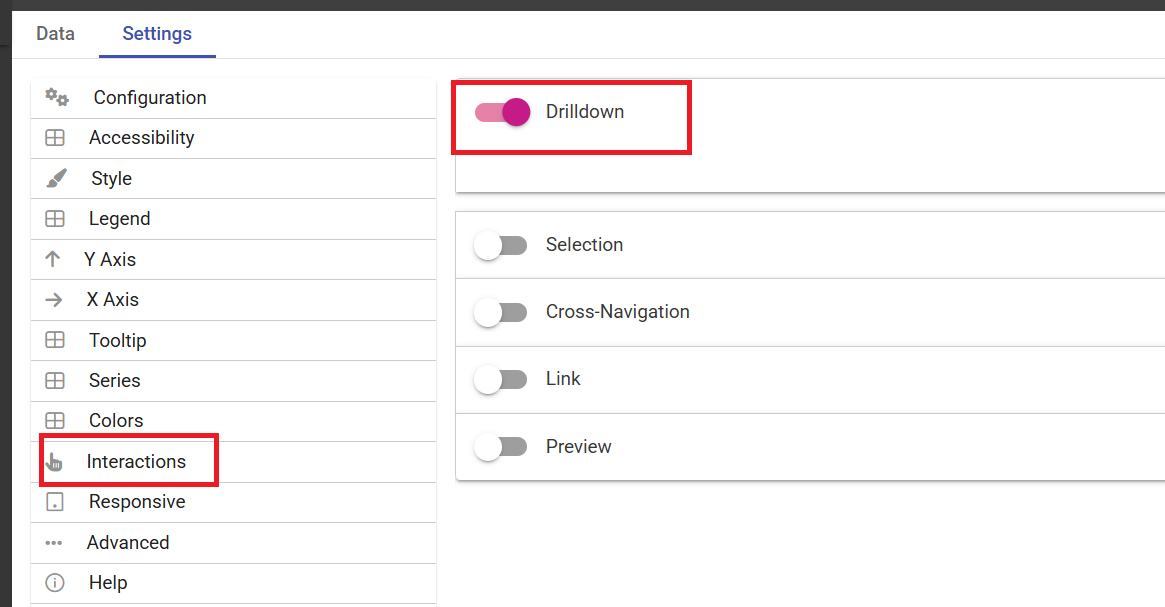

Bar, column, line, pie, radar and treemap charts allow the drill-down functionality.

Activity Gauge

The Activity Gauge uses circular-shaped bars to compare multiple categories against the target. After clicking the Add widget button or icon pick up Chart and then the Activity Gauge chart from the gallery.

Activity Gauge example

Below you can see how to set the aliases. From the drop down menu you can choose the column(s) previously selected as measures and rename them.

Setting Series example

If you want to set properties for the Tooltip just click Tooltip and set Bold and Backgroud color as shown in the below image

Setting Tooltip example

It is possible to change the position of the Legend just setting Left/Middle/Right. In the above picture the legend is set to appear in the middle. Some othe properties you can manage are: Bold, Font size and family, Borders, Background.

Bubble

The Bubble chart is useful in case of three series. The size of the bubble depends on the third dimension. After clicking the Add widget button pick up Chart and then the Bubble chart from the gallery.

Bubble chart - dragging and dropping measures and attributes

You can set some properties for the series. It is possible to define them for all series or just for one. As shown in the below image in the last case just press the plus icon and the drop down menu will show you the list of columns.

Bubble chart - setting series

An example of bubble chart is shown below, bubbles color has been set through the Color property inside Settings section.

Bubble chart example

Dumbell

A Dumbbell chart uses circles and lines to show changes over time. After pressing the Add Widget button or icon pick up Chart and then the Dumbell chart from the gallery. To define the chart you need one attribute and two measures to define the series. See the below image.

Dumbell chart example - defining measures and atributes

Once inserted your attributes and measures you can manage the settings of the start of your Series as shown below.

Dumbell chart - settings serie

Dumbell chart - renaming measures

Dumbell chart example

Funnel

This kind of chart provides a visual representation of how data progresses through different stages of a process starting from a broad head and ending in a narrow neck. By clicking the Add widget pick up Chart and then Funnel from the gallery. Once a dataset has been selected, click the Add Widget icon of your sheet or on the equivalent icon of the menu bar. Select Funnel as chart, choose just one measure and one attribute and then press Save to get the graph visualized. See below image.

Funnel chart example

Packed Bubble

A Packed Bubble is similar to a Bubble Chart where bubbles are tightly packed rather than spread over a grid of X and Y-Axis. Once a dataset has been selected, click the Add Widget icon of your sheet or on the equivalent icon of the menu bar. Select Chart and then Funnel as chart, choose just one measure and two attributes. The first attribute is used for grouping and the second one for labels. Then press Save to get the graph visualized. See below image.

Packed bubble chart example

Pictorial

A Pictorial chart represents different stages of data using a bulb. Once a dataset has been selected, click the Add Widget icon of your sheet or the icon of the menu bar. Select Chart and then Pictorial as chart, choose just one measure to define the Serie and one attribute for the category. See below image

Pictorial chart example

This kind of chart lets the upload of an SVG image that can transform the look and feel of your pictorial chart. See below image.

Pictorial chart with SVG example

The following image shows where the SVG property can be found.

SVG property

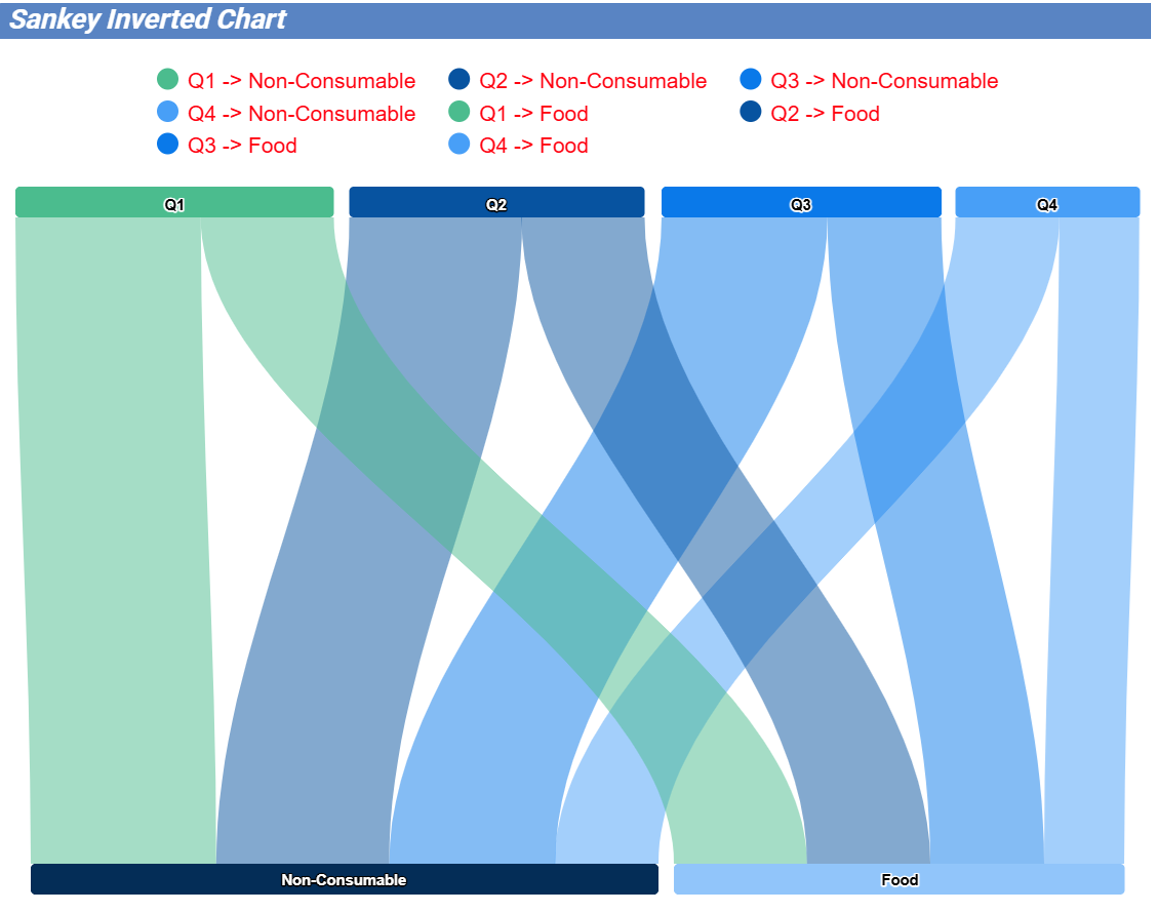

Sankey

A Sankey chart is useful to highlight the flow of data from one value to another. By clicking on the Add widget button press Chart and then Sankey. The gallery offers two kinds of charts: Sankey and Sankey Inverted. The last chart is just the inverted represention of the normal Sankey. Once selected the dataset, you need to choose two attributes representing the from and the to categories of the flow and a measure.

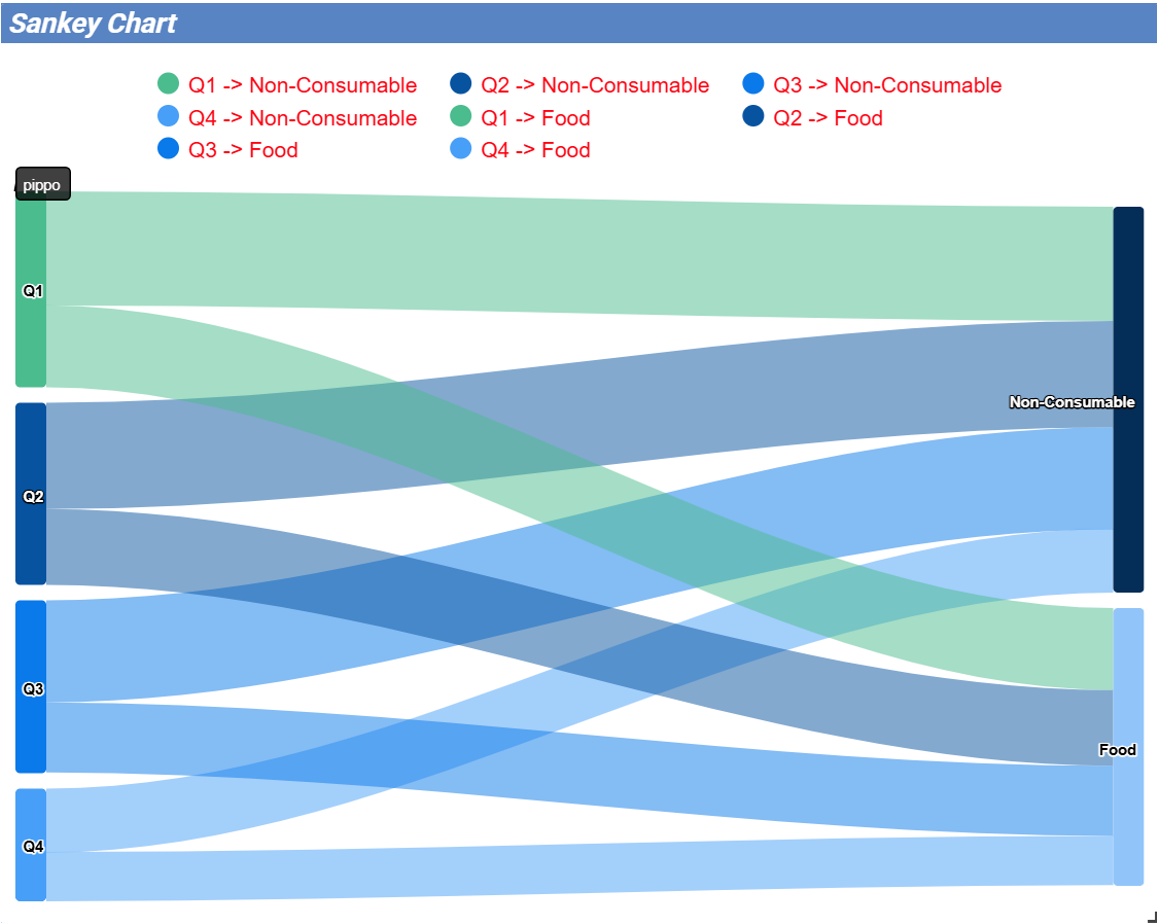

Sankey chart example

Scatter

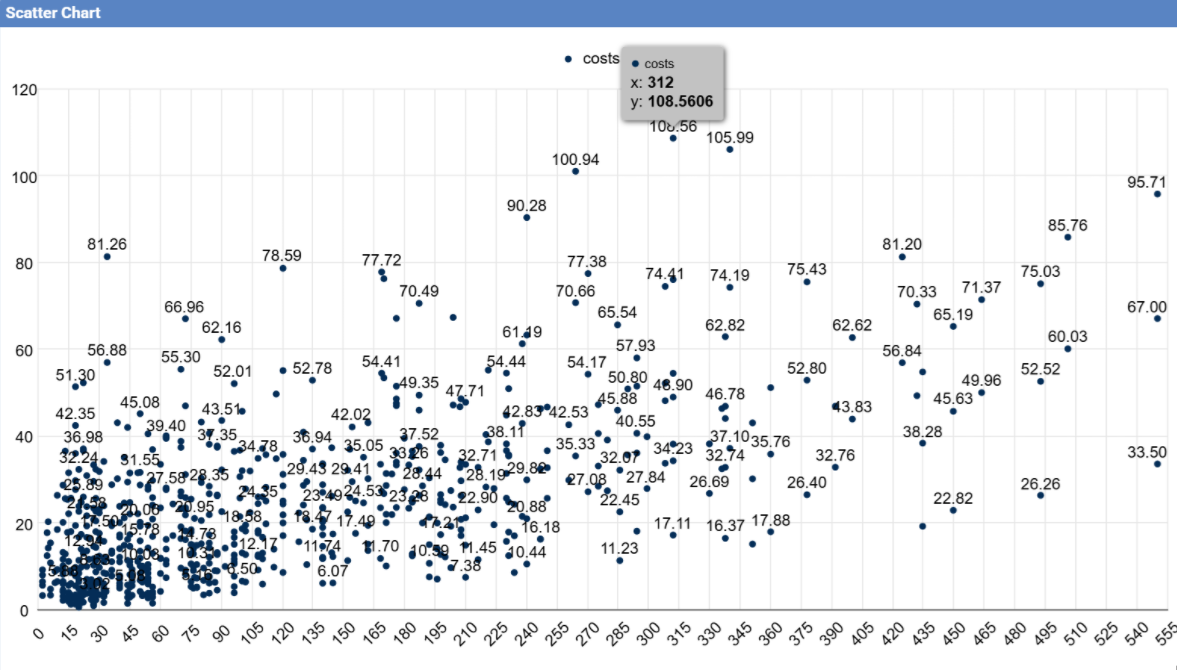

A Scatter chart is like a cloud where two variables from a data set are plotted on a Cartesian space by using dots. By clicking on the Add widget button press Chart and then Scatter. After selecting the dataset to define this chart you need to pick up two numerical values representing the measure and the category. See below image

Scatter chart - defining series and categories

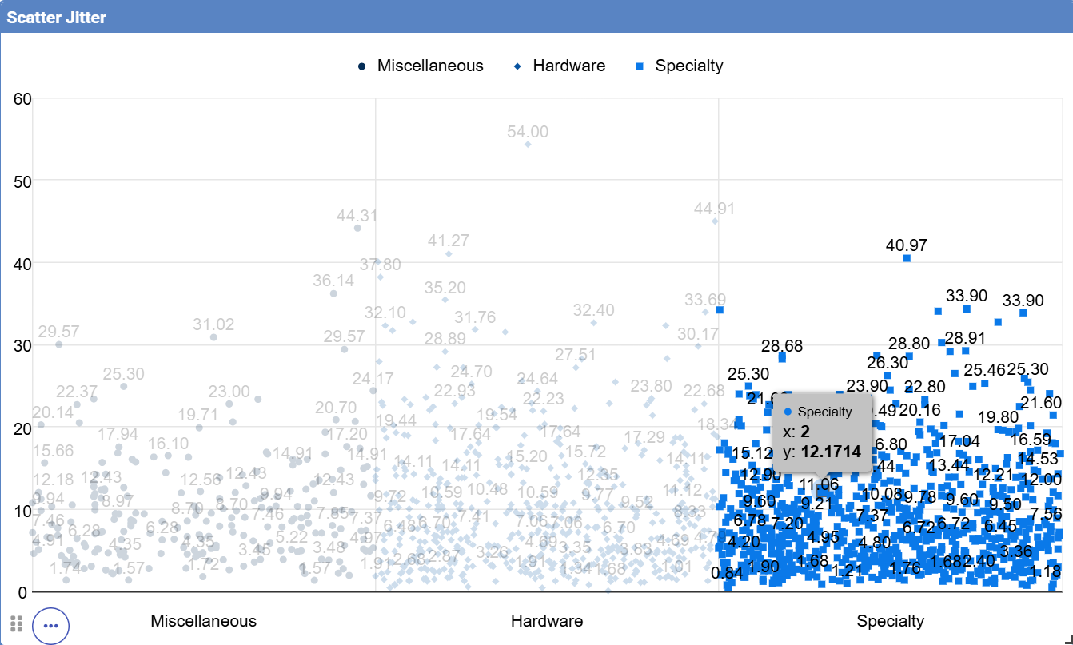

Scatter Jitter

This chart is wseful when there are so many points piled up that data reading data turns out to be very tricky thus each point will be slightly offset horizontally to reduce overlap and to allow reading.

Scatter jitter - defining attribute and measure

Scatter jitter chart example

Streamgraph

A Streamgraph represents a variation of the area chart where areas are plotted around a central axis and not a fixed one. This shapes the graph with no corners but with rounded edges giving the impression of a flow. By clicking on the Add widget button press Chart and then Streamgraph. You need to choose one attribute for the X-axis, one attribute as category and one measure as shown below.

Streamgraph chart - defining series and categories

Streamgraph chart example

Waterfall

A Waterfall chart can be useful to understand how data is affected by positive or negative values. It’ s like a bar chart where in the middle of two normal bars there are suspended bars as the beguinning of the bar is represented by the end of the previous bar. By clicking on the Add widget button press Chart and then Waterfall. Select yor dataset and then you will be asked to enter just one attribute as category and one measure as a serie as shown below.

Waterfall - defining measures and attributes

Waterfall chart example

Html widget

The HTML widget allows to add customized HTML and CSS code to implement very flexible and customized dynamic elements. This widget supports all HTML5 standard tags and CSS3 properties. By clicking the Add widget button or icon and then HTML you can insert the HTML widget.

For security reasons no custom Javascript code can be added to html tags. Every tag considered dangerous will be deleted after saving the document.

Important

A CSS property will be extended to all the classes in the cockpit with the same name; to apply the property only to the current widget use the id prefix shown in the info panel of the CSS editor

HTML widget editor

Available Tags

kn-column

[kn-column='COLUMN-NAME' row='COLUMN-ROW-NUMBER' aggregation='COLUMN-AGGREGATION' precision='COLUMN-DECIMALS']

The kn-column tag is the main dynamic HTML Widget tool, it allows to select a column name from the selected dataset and to display its values. The value of the kn-column attribute should be the name of the column value you want to read in execution.

The row attribute is optional and is a number type attribute. This attribute can let you retrieve a specific row according to the position in the dataset. If no row is selected the first row column value will be shown.

The aggregation attribute is optional and is a string type attribute. If inserted the value shown will be the aggregation of all column rows values. The available aggregations are: AVG, MIN, MAX, SUM, COUNT_DISTINCT, COUNT, DISTINCT COUNT.

The precision attribute is optional and is a number type attribute. If added and if the result value is a number, the decimal precision will be forced to the selected one.

kn-parameter

[kn-parameter='PARAMETER-NAME']

The kn-parameter tag is the tool to show a dataset parameter inside the widget execution. The value of the kn-parameter attribute should be the name of the parameter to display.

kn-calc

[kn-calc=(CODE-TO-EVALUATE) precision='VALUE-PRECISION']

The kn-calc tag is the tool to calculate expressions between different values on widget execution. Everything inside the brackets will be evaluated after the other tags substitution, so will be possible to use other tags inside.

The precision attribute is optional and is a number type attribute. If added and if the result value is a number, the decimal precision will be forced to the selected one.

kn-repeat

<div kn-repeat="true" limit="LIMIT-NUMBER"> ... REPEATED-CONTENT ... </div>

The kn-repeat attribute is available to every HTML5 tag, and is a tool to repeat the element for every row of the selected dataset.

This attribute is naturally linked to kn-column tag. If inside a kn-column tag without a row attribute is present, the kn-repeat will show the column value for every row of the dataset.

Inside a kn-repeat is possible to use the specific tag [kn-repeat-index], that will print the index of the repeated column row.

The limit attribute is optional and is a number type attribute. If added the number of row repeated will be limited to the selected number. If no limit is provided just the first row will be returned. If you want to get all records, you can set it to -1, but be careful because big datasets can take a while to load completely.

kn-if

<div kn-if="CODE-TO-EVALUATE"> ... </div>

The kn-if attribute is available to every HTML5 tag and is a way to conditionally show or hide an element based on some other value. The attribute content will be evaluated after the other tags substitution, so it will be possible to use other tags inside. If the evaluation returns true the tag will be shown, otherwise it will be deleted from the execution.

kn-cross

<div kn-cross> ... </div>

The kn-cross attribute is available to every HTML5 tag and is a way to make the element interactive on click. This attribute makes the element clickable to open the cross navigation specified in the widget settings. If there is no cross navigation set this tag will not work.

kn-preview

<div kn-preview="DATASET-TO-SHOW"> ... </div>

The kn-preview attribute is available to every HTML5 tag and is a way to make the element interactive on click. This attribute makes the element clickable to open the dataset preview dialog. The attribute value will be the dataset label of the dataset that you want to open. If a dataset is not specified the cockpit will use the one set for the widget. If no dataset has been set and the attribute has no value this tag will not work.

kn-selection

<div kn-selection-column="COLUMN-NAME" kn-selection-value="COLUMN-VALUE"> ... </div>

The kn-selection-column attribute is available to every HTML5 tag and is a way to make the element interactive on click. This attributes makes the element clickable to set the chosen column and value as a selection filter in the cockpit. The default will use as a selection the first row value of the column.

The kn-selection-value attribute is optional and will let you specify a specific value as a column selection filter.

kn-variable

[kn-variable='VARIABLE-NAME' key='VARIABLE-KEY']

The kn-variable tag is the tool to read the runtime value of one of the defined variables. It will change depending on the current value and can be used inside kn-if and kn-calc.

The key attribute is optional and will select a specific key from the variable object if the variable is “Dataset” type, returning a specific value instead of a complete dataset.

Warning

Banned Tags To avoid Cross-site scripting and other vulnerabilities, some tags are not allowed and will automatically be removed by the system when saving the dashboard:

• <button></button>

• <object></object>

• <script></script>

If you need to simulate a button behaviour use a div (or another allowed tag) and replicate the css style as shown below:

<div class="customButton">Buttonlike div</div>

.customButton {
     border: 1px solid #ccc;
     background-color: #ededed;
     cursor: pointer;
 }
 .customButton:hover {
     background-color: #d8d8d8;
 }

Warning

Whitelist

Base paths to external resources (images, videos, anchors, CSS files and inline frames) must be declared within TOMCAT_HOME/resources/services-whitelist.xml XML file inside Knowage Server, otherwise these links will be removed by the system. This whitelist file contains safe and trusted websites, to restrict end users of providing unsafe links or unwanted web material. Knowage Server administrator can create or edit it (directly on the file system) to add trusted web sites. Here below you can see an example of services-whitelist.xml file; as you can see, its structure is quite easy: baseurl attributes refer to external services, relativepath must be used for Knowage Server internal resources instead:

<?xml version="1.0" encoding="UTF-8"?>
<WHITELIST>
   <service baseurl="https://www.youtube.com" />
   <service baseurl="https://player.vimeo.com" />
   <service baseurl="https://vimeo.com" />
   <service baseurl="https://media.giphy.com" />
   <service baseurl="https://giphy.com" />
   <service baseurl="https://flic.kr" />
   <service relativepath="/knowage/themes/" />
   <service relativepath="/knowage/icons/" />
   <service relativepath="/knowage/restful-services/1.0/images/" />
</WHITELIST>

Table widget

By clicking on the Add widget button or icon and then on Table it is possible to add a Table widget to the dashboard. After selecting the dataset, drag and drop the columns to show. You can active Pagination just switching on the sliding button and then specify the number of items to be visualized per page. To handle each column settings just click on the setting icon before the trash. You will be able to set aliases, the aggregation function and filters on that column.

Table widget editor

To manage styles and other functionalities for columns just move to the Settings section. The below image shows how to pin colums in a table. Pinned columns are columns that are fixed to the left or to the right of the table. The plus icon will add a new line where the column to be pinned has to be picked up from the Columns drop down menu. The field Pinned has toset to Left or Right.

Pinning a column

The value of a specific column can also be represented by using an icon. See below image.

Table widget - choosing the icon to visualize

However, it is important to have previously specified that column as being represented as an icon otherwise choices will not be applied.

Table widget - set visualization type as icon

Table widget example with icons as values

Visibility conditions can also be applied for a column. Just click the Visualization property as shown below.

Table widget - visibility conditions

The below example shows how ordering a column.

Table widget - ordering a column

Pivot widget

By clicking the Add widget button or icon and then Pivot it is possible to add a Pivot widget to the dashboard. With this widget the user can decide wich field of a dataset could be represented as a column and wich one as a row. The below image shows an example of a Pivot widget. Changes to the layout can be made by handling the Style properties defined in the Settings section of the widget.

Pivot widget example

After selecting the dataset, you can drag and drop fields to define columns, rows and measures of the pivot table.

Pivot widget - defining colums, rows and measures

By clicking on the icon highlighted in the below image a Field chooser appears. Here you can handle some properties as ordering just by clicking the arrow appearing on the right side of each field or you can simply exchange the attributes previosly selected to show in your pivot table.

Pivot widget - Field chooser

Filters on values can be applied just by clicking the funnel icon.

Pivot widget - applying filters

By default all fields are visualized as text. In case you need a specific measure to be represented i.e. as an icon you just need to click the plus icon, select a measure column from the drop down menu and the visualization type.

Pivot widget - displaying measures as text or icon

Conditional styles can also be applied to a measure so that when resulting i.e. greater that a specific value the color can be a different one. For all those columns to be represented as an icon, it is important to handle this property to specify the range of values ​​for which the measure will appear as an icon. Outside the specified range(s) the measure will appear as text.

Pivot widget - applying styles to fields

Pivot widget after applying styles to fields

Map widget

By clicking the Add widget button or icon and then Map it is possible to add a Map widget to the dashboard. The Map Widget is useful when a user needs to visualize data related to a geographic position. The widget supports multiple layers, one for every dataset added to widget and one data field for every layer.

Map widget example.

Unlike the most of the widgets that have a Data section for data configuration here we find the Layer section where the user can add and remove layers, set the format of a spatial attribute to use and specify the attributes to display on the map and on the detail popup.

The below image shows a map widget with two layers where each dataset is related to one layer.

Map widget - choosing a dataset for a layer.

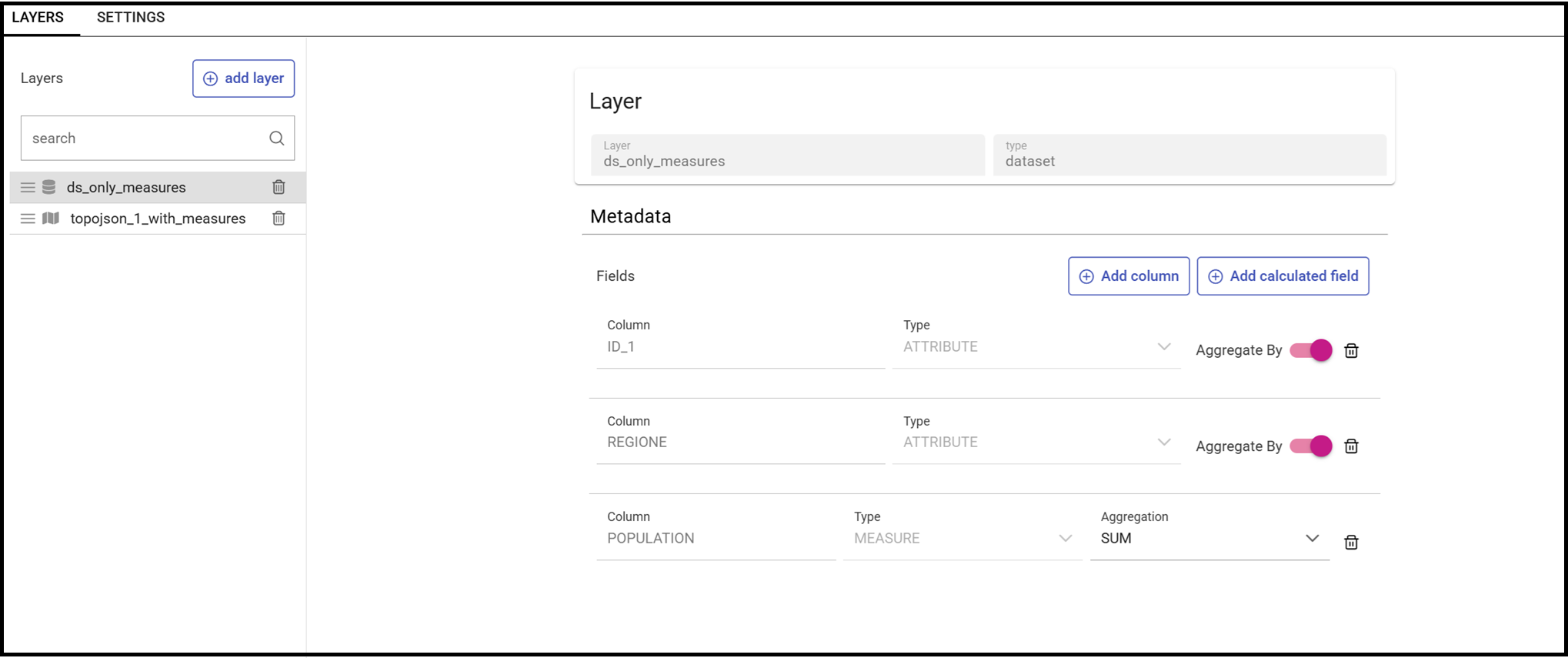

In the Layer Metadata section, the user can set the spatial attribute of the dataset that will be used to display markers on the map. Currently, the following spatial attribute types are supported:

• String format: where the value specify two decimal numbers representing latitude and longitude separated by a space;

• JSON: where the value is a text string in GeoJSON format;

• WKT: where the value is a text string in Well-known Text format;

Layer metadata section

Important

Geographic coordinates format For every type defined above the user has to specify the format of the geographic coordinate that is wether latitude comes first or vice versa.

Geographic coordinates

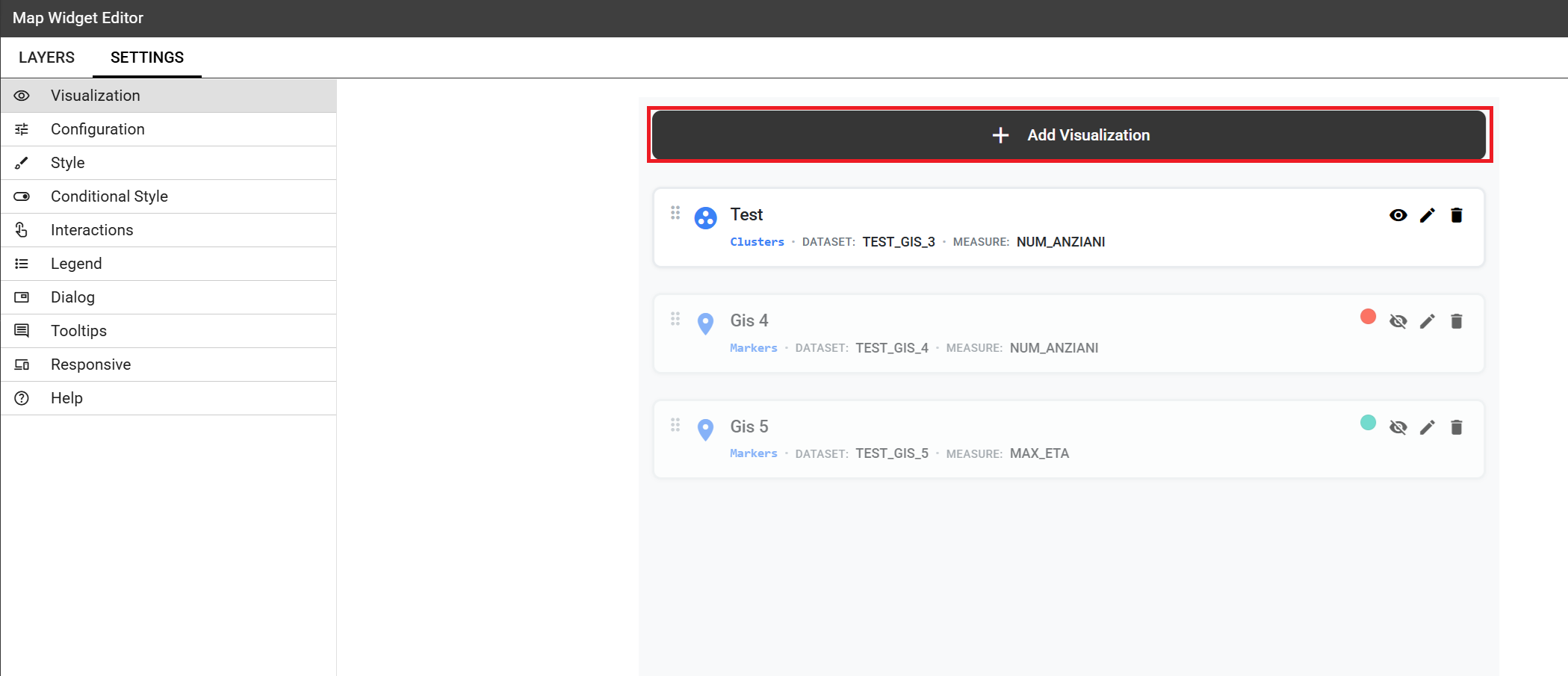

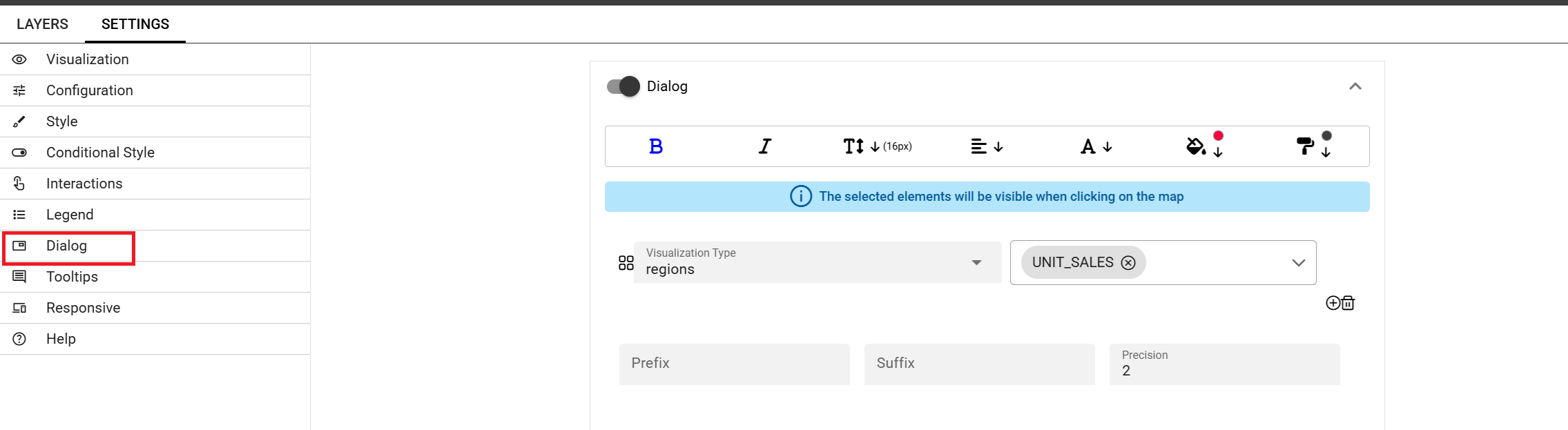

For every layer, there are different ways to display data on the map: markers, balloons, pies, clusters, heatmaps, choroplet and geography.

The plus icon to the left of the trash allows the addition of new information for further layers as shown below.

Data visualization for layers

When representing data as markers the user can choose between Icon, Image and Web Image markers. The below image shows an example where an icon has been chosen. The image highlights both the picker for choosing icons and the icon selected that in this case corresponds to the anchor icon.

Marker represented as icon

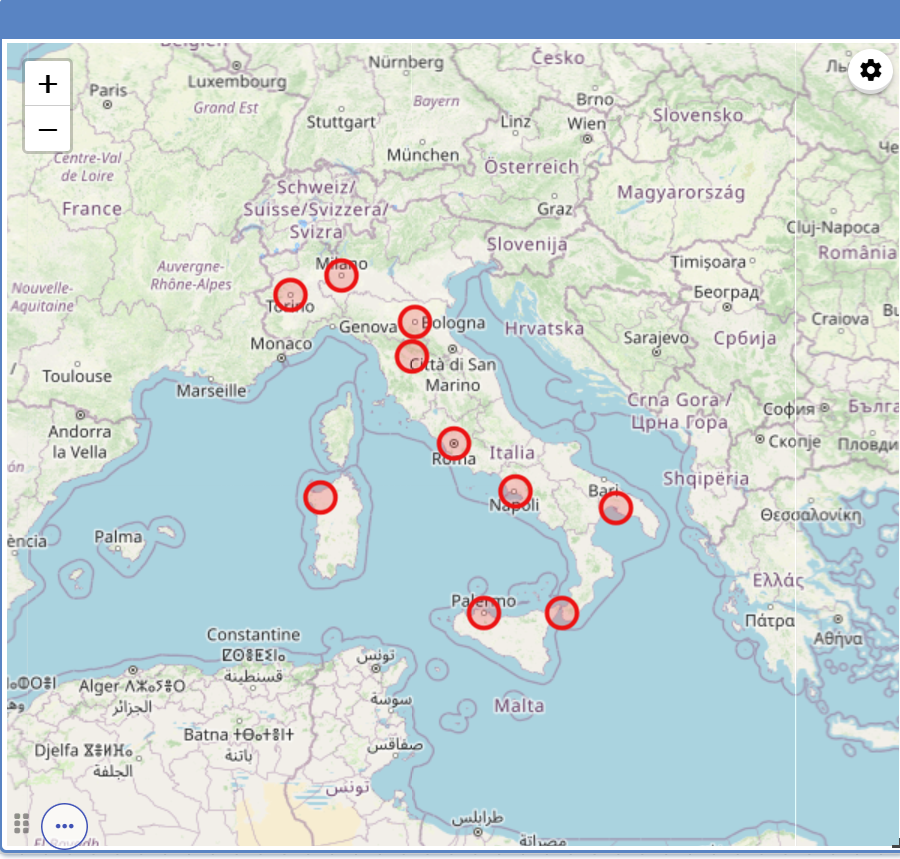

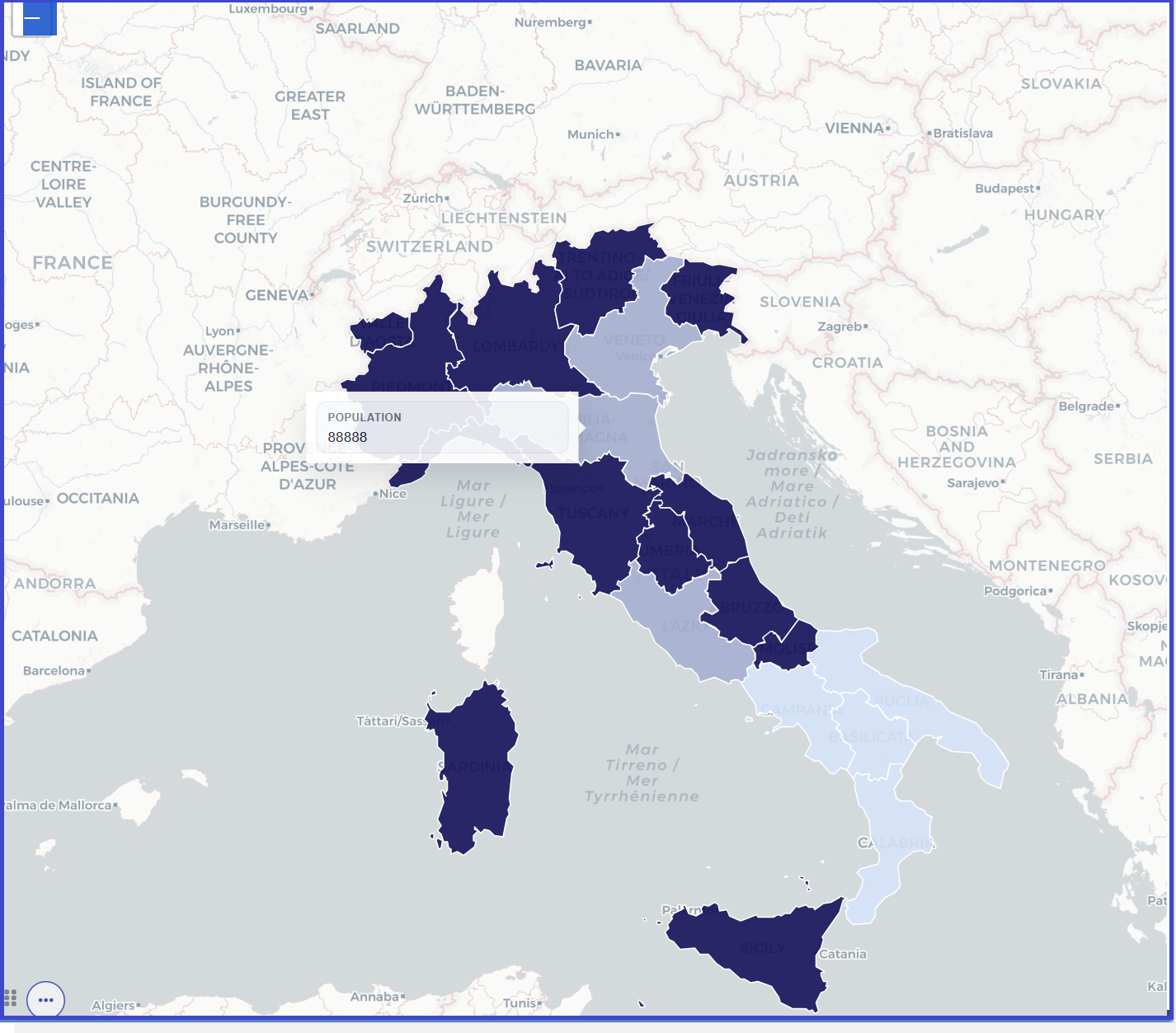

Below an example of how a map can look like depending on how data is visualized.

Data visualization types on a map

Active selections widget

By clicking on the Add widget button or icon and then Active Selections it is possible to add a Active Selections widget to the dashboard. This chart shows the list of current selections applied on a widget. An icon on the right upper corner of the dashboard will be visible and clickable to open the list. On each item of the list a trash icon is available for the deletion of that selection.

Selector widget

By clicking on the Add widget button or icon and then Selector it is possible to add a Selector widget to the dashboard. The Selector widget allows a dataset filtering by means of a combobox, radio button or checkboxes. After choosing the column to use as a filter just move to the Setting section and then Configuration. See below image.

Active selections widget

Custom chart widget

By clicking the Add widget button or icon and then Custom Chart it is possible to add a Custom Chart widget to the dashboard.

The Custom Chart allows the user to directly embed HTML, CSS and JS code using a supported external chart library and integrating with Knowage data and interactions using custom API.

Important

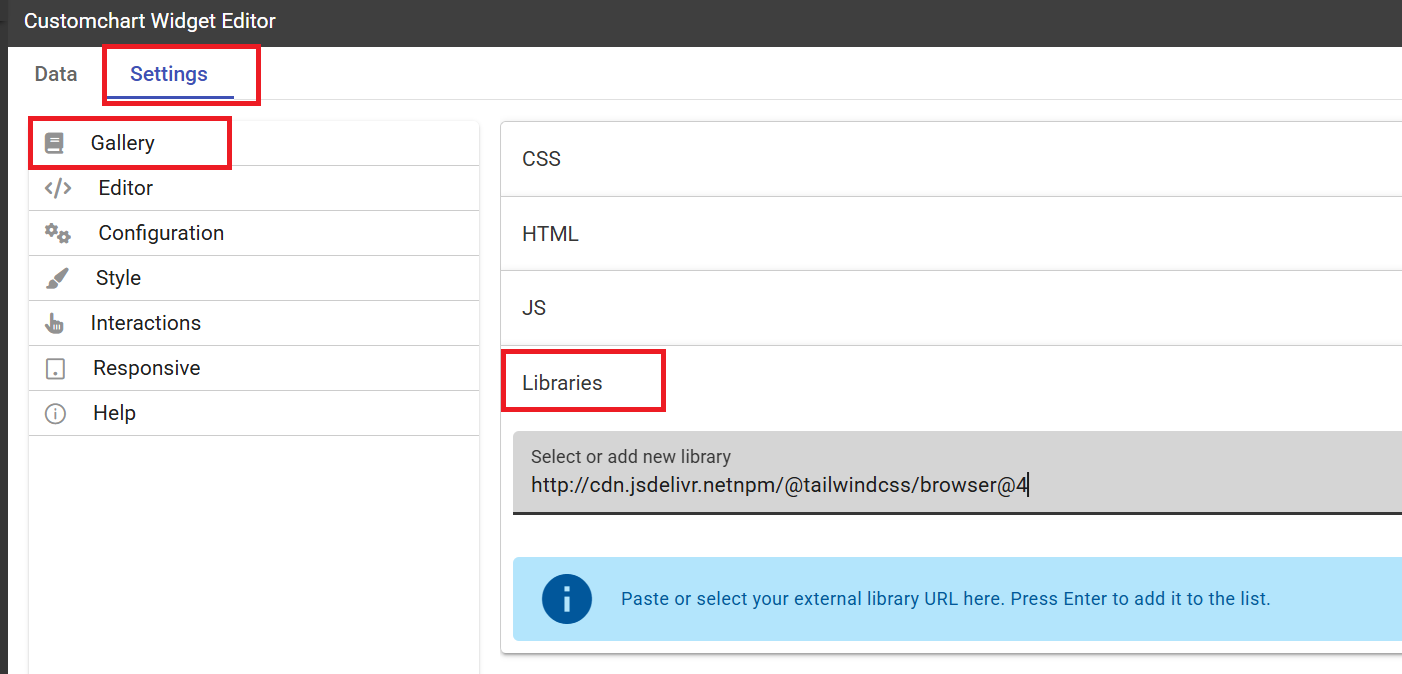

Chart libraries

Knowage EE supports the inclusion of other libraries adding the CDN script tag in the html Editor. Be aware that all urls not set in the whitelist will be deleted on save. To use this import apply the kn-import tag like the following example:

<kn-import src="yourCDNurl"></kn-import>

This widget will only be available if the Create custom chart widget option is enabled for a specific user role.

The Editor property under the Settings section allows to insert custom code for CSS, HTML and JavaScript.

Custom chart editor

The CSS component allows to insert CSS classes that will be used by the HTML code of the widget. It’s also possible to use @import command if the referred url is inside the whitelist.

The HTML component allows to insert HTML tags in order to create a structure to host the custom chart and additional structural informations.

The JavaScript component is the code section, and allows to insert the custom chart code, custom Javascript code and the API usage.

The keyword datastore allows using APIs. Datastore is an object that contains the curren data; Through a variety of methods it is possible to iterate over the results and get all values. See below:

getDataArray

returns: data array

params: custom user function

example:

datastore.getDataArray(function(record){
    return {
    name: record.city,
    y: record.num_children_at_home
    }
})

result:

     [
             {
                     name:'New York',
                     y: 5
             },
             {
                     name:'Boston',
                     y: 3
             }
     ]

getRecords

returns: array of objects; each object has nameOfDsColumn: value

params: no params

example:

datastore.getRecords()

result:

     [
             {
                     city:'New York',
                     total_children: 5,
                     country: 'USA'
             },
             {
                     name:'Boston',
                     total_children: 3,
                     country: 'USA'

             }
     ]

getColumn

returns: array of unique values for one dataset column

params: dataset’s column name

example:

datastore.getColumn('country')

result:

['USA','Mexico','Canada']

getSeriesAndData

returns: array of series with data for each series

params: serie/measure name, custom user function

example:

datastore.getSeriesAndData('PRODUCT_FAMILY',function(record){
    return {
        y: record.UNIT_SALES,
        name: record.QUARTER
    }
})

result:

[
        {
                name:'Drink',
                data: [
                        {
                                y: 5000,
                                name: 'Q1'
                        },
                        {
                                y: 7000,
                                name: 'Q2'

                        }
                ]
        },
        {
                name:'Food',
                data: [
                        {
                                y: 6000,
                                name: 'Q1'
                        },
                        {
                                y: 4000,
                                name: 'Q2'

                        },
                        {
                                y: 3000,
                                name: 'Q3'

                        }
                ]
        }
]

sort - angular sort service (sorting is executed on the client side)

returns: datastore sorted by dataset’s column/s

params: dataset’s column name

optional: sort type object {column:’asc/desc’}

example1:

datastore.sort('STORE_ID') //by default, it is asc
OR:
datastore.sort({'STORE_ID':'asc'})

filter - angular filter service (filtering is executed on the client side)

returns: datastore filtered by some value for dataset’s column/s

params: object that contains dataset’s columns names for properties -> value to be filtered, an optional boolean to enable the strict comparison (false as default)

example:

datastore.filter({'QUARTER':'Q1','STORE_ID':'1'}, true)

hierarchy

returns: hierarchy object with its functions and tree

params: object that contains property levels -> array of dataset’s columns names

optional: same object with optional property measures -> object that contains dataset’s columns names for properites -> aggregation function (sum, min, max)

example:

var hierarchy = datastore.hierarchy({'levels':['QUARTER','PRODUCT_FAMILY'],'measures': {'UNIT_SALES':'SUM'}})

result:

[
        {
                "name": "Q1",
                "children": [
                        {
                                "name": "Non-Consumable",
                                "children": [],
                                "UNIT_SALES": 7.4571
                        },
                        {
                                "name": "Food",
                                "children": [],
                                "UNIT_SALES": 12
                        }
                ],
                "UNIT_SALES": 19.4571
        },
        {
                "name": "Q2",
                "children": [
                        {
                                "name": "Non-Consumable",
                                "children": [],
                                "UNIT_SALES": 9.9429
                        },
                        {
                                "name": "Food",
                                "children": [],
                                "UNIT_SALES": 7.2
                        }
                ],
                "UNIT_SALES": 17.1429
        }
]

getChild

returns: node of hierarchy (node is Node object)

params: index of child in hierarchy

example:

hierarchy.getChild(0)

result:

{
        "name": "Q1",
        "children": [
                {
                        "name": "Non-Consumable",
                        "children": [],
                        "UNIT_SALES": 7.4571
                },
                {
                        "name": "Food",
                        "children": [],
                        "UNIT_SALES": 12
                }
        ],
        "UNIT_SALES": 19.4571
}

getLevel

returns: array of nodes of hierarchy on specific level

params: index of level in hierarchy

example:

hierarchy.getLevel(0)

result:

[
        {
                "name": "Q1",
                "children": [
                        {
                                "name": "Non-Consumable",
                                "children": [],
                                "UNIT_SALES": 7.4571
                        },
                        {
                                "name": "Food",
                                "children": [],
                                "UNIT_SALES": 12
                        }
                ],
                "UNIT_SALES": 19.4571
        },
        {
                "name": "Q2",
                "children": [
                        {
                                "name": "Non-Consumable",
                                "children": [],
                                "UNIT_SALES": 9.9429
                        },
                        {
                                "name": "Food",
                                "children": [],
                                "UNIT_SALES": 7.2
                        }
                ],
                "UNIT_SALES": 17.1429
        }
]

node is an instance of Node object. It has convenient functions to explore the node:

var node = hierarchy.getChild(0)

result:

{
        "name": "Q1",
        "children": [
                {
                        "name": "Non-Consumable",
                        "children": [],
                        "UNIT_SALES": 7.4571
                },
                {
                        "name": "Food",
                        "children": [],
                        "UNIT_SALES": 12
                }
        ],
        "UNIT_SALES": 19.4571
}

getValue

returns: a measure’s value for a specific hierarchy’s child(node)

params: dataset’s measures’s name

example:

node.getValue('UNIT_SALES')

result: 19.4571

getChild

returns: a specific node’s child

params: index of nodes’s child

example:

node.getChild(0)

result:

{
        "name": "Non-Consumable",
        "children": [],
        "UNIT_SALES": 7.4571
}

getParent

returns: a node parent of specific child

params: no params

example:

node.getChild(0).getParent()

result:

{
        "name": "Q1",
        "children": [
                {
                        "name": "Non-Consumable",
                        "children": [],
                        "sales": 7.4571
                },
                {
                        "name": "Food",
                        "children": [],
                        "sales": 12
                }
        ],
        "sales": 19.4571
}

getChildren

returns: an array of node’s children

params: no params

example:

node.getChildren()

result:

[
        {
                "name": "Non-Consumable",
                "children": [],
                "sales": 7.4571
        },
        {
                "name": "Food",
                "children": [],
                "sales": 12
        }
]

getSiblings

returns: an array of node siblings to a specific child

params: no params

example:

node.getChild(0).getSiblings()

result:

[
        {
                "name": "Non-Consumable",
                "children": [],
                "sales": 7.4571
        },
        {
                "name": "Food",
                "children": [],
                "sales": 12
        }
]

variables

returns: a key/value object with all the declared variables and values

params: no params

example:

var myvariables = datastore.variables;

result:

{
    variableCity: 'New York',
    variableNum: 100
}

profile

returns: a key/value object with all the declared profile attributes for the user

params: no params

example:

var user = datastore.profile;

result:

{
    name: 'My Name',
    tenant: 'Knowage',
    customProfileAttribute: 'Test value',
    role: 'user'
}

selections

returns: an array with all the selections done; each selection has informations about the dataset where the selection has been done, the column e the value passed through the selection

params: no params

example:

var activeSelection = datastore.selections;

result:

[
        {
                "ds": "FOODMART_SALES",
                "column": "PRODUCT_FAMILY",
                "value": "Food"
        },
        {
                "ds": "FOODMART_COST",
                "column": "QUARTER",
                "value": "Q1"
        }
]

parameters

returns: a key/value object with all the parameters associated to the dashboard

params: no params

example:

var myParameters = datastore.parameters;

result:

{
    "par_family": "Non-Consumable",
    "par_number": 10
}

Interaction with the other widgets is also possible just by using the clickManager:

datastore.clickManager(columnName, columnValue);

This method can be added everywhere the code manages a click event and will notify Knowage about the interaction. The default case (if no cross-navigation or preview-navigation is set) will throw a selection filter with the dataset column name and column value set in the method. Any enabling of cross-navigations or previews will have priority on the selection and will trigger the specified interaction. The dynamic values used will be the ones set in the method arguments.

Warning

Whitelist

For security reasons no dangerous Javascript code can be added to html tags. Every tag considered dangerous will be deleted on save by the system. Base paths to external resources (images, videos, anchors, CSS files and inline frames) must be declared within TOMCAT_HOME/resources/services-whitelist.xml XML file inside Knowage Server, otherwise those external links will be removed by the system. This whitelist file contains safe and trusted websites, to restrict end users of providing unsafe links or unwanted web material. Knowage Server administrator can create or edit it (directly on the file system) to add trusted web sites. Here below you can see an example of services-whitelist.xml file; as you can see, its structure is quite easy: baseurl attributes refer to external services, relativepath must be used for Knowage Server internal resources instead:

<?xml version="1.0" encoding="UTF-8"?>
<WHITELIST>
    <service baseurl="https://www.youtube.com" />
    <service baseurl="https://player.vimeo.com" />
    <service baseurl="https://vimeo.com" />
    <service baseurl="https://media.giphy.com" />
    <service baseurl="https://giphy.com" />
    <service baseurl="https://flic.kr" />
    <service relativepath="/knowage/themes/" />
    <service relativepath="/knowage/icons/" />
    <service relativepath="/knowage/restful-services/1.0/images/" />
</WHITELIST>

Discovery widget

By clicking on the Add widget button or icon and then Discovery it is possible to add a Discovery widget to the dashboard. The Discovery widget is used to easily use and navigate into a SOLR dataset by using facets aggregation and by showing the results in a tabular representation . It is possible to choose the fields that should be shown as the result. The result to be visualized can also be configured to show a limited set of fields and facets. Facets are shown on the left side of the table and data can be filtered just clicking on a specific value inside one of them. The search bar can also be set up from the configuration settings. The below image shows an example of dicovery widget.

Discovery widget example

Facets properties can be handled by enabling the related option i.e. selecting which faces to visualize. See below images. To throw the filtering on the table the property Enable Selection has to be enabled.

Other properties to handle are:

• Closed by default, if enabled the facets will be visible as closed groups by default.

• Facets column width, this setting allows to choose the dimension of the facets column in px, rem or percentage values.

• Facets max number, this setting allows to choose the maximum number of facets visible for every field.

Discovery widget - Facets

A related table shows the selection(s) made on facets.

Selected facets

The below image shows how to enable the search bar by specifing on which fields to run the search and whether it is a static search or just run through an analytical driver.

Discovery widget - search bar

Discovery widget - Types of search

Python widget

By clicking the Add widget button or icon and then on Python it is possible to add a Python widget to the dashboard. The editor widget allows embedding a Python script. Before writing the code it is necessary to specify

1 - the type of the output produced by the script:

• Image or

• HTML

2 - the name of the file where to save the output of the script.

See below image

Python widget editor

The below image shows an example of a Python script.

Python script example

Dataset columns and/or parameters can also be added to the script as shown below.

Adding parameters or columns to a Python script

Inside the Python scripts analytical drivers can be also accessed by using the usual placeholder syntax $P{}.

Additionaly more environments where to run scripts can be created. The below image shows how to handle all the evironments previously defined. To support this kind of choice a list of available libraries is displayed for each selected environment.

Python environments

Cross Navigation

The cross navigation allows navigation from one document to another. You will find the cross navigation functionality in the Settings section of a widget. Just click on Interactions as shown below.

Searching cross navigation

Activate the functionality just switching on the slidind button and select the name of the cross navigation previously defined.

Activating cross navigation

Select, Link, Preview

The Interaction property contains some otherfunctionalities such as:

• Selection: if deactivated i.e. the chart is not clickable

• Link, to open a specific URL when clicking i.e. on a chart

• Preview, to download a file when clicking i.e. on a chart

Only one option can be activated at the same time. To activate the option just switch on the corresponding sliding button.

Drill-down

Drill down leads the user from a more general view of the data to a more specific view just by clicking the mouse. This functionality is also listed under the Interactions property of the Settings section.

The following example shows how drill-down works.

The selected categories are four and called: product_family, product_department, product_category and product_subcategory. Once we open the document, we get as shown below:

Drillable Bar Chart

When selecting shelf_depth measure of the Food category one gets (see next figure):

Drillable Bar Chart: first drill

Once again, we can select Frozen food subcategory and drill to a second sub-level as shown below:

Drillable Bar Chart: second drill

And so on to the fourth subcategory. Selecting the “Back to: …” icon available at the right corner of the graphic, the user can get back to the previous level. This efficient feature allows a deep insight of the analysis that leads to important conclusions.

Manage Cache/Frequency

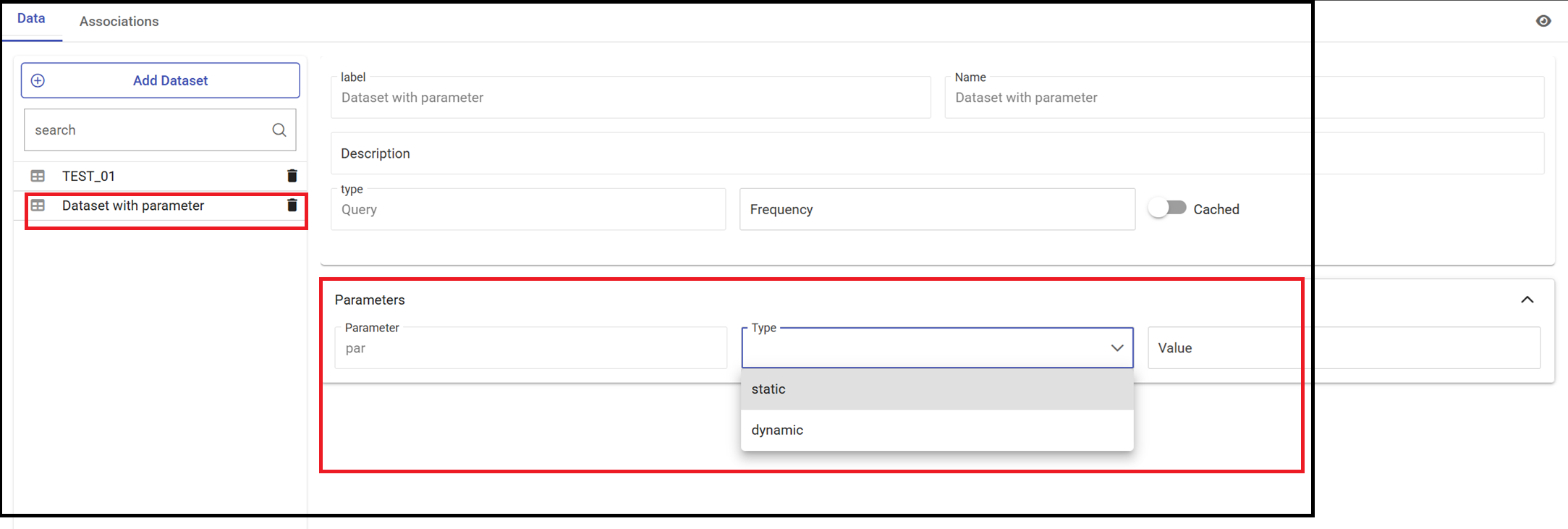

To manage the cache and frequency of your data you need to select the dataset form the list of the available ones and switching on the sliding button for the Cache option as shown in the below image.

Managing cache and frequency

You can also index columns.

Managing indexes on columns

Add a Calculated Field

Steps to add a calculated field:

• select a dataset

• click on the Add Columns button as shown in the below image.

• follow the instructions appearing in the pop up (assign a name, a function,..)

• close the pop-up by clicking Apply. The button remains graid off until validation is done.

Adding a calculated field

Once the new field has been added you will see the new column appearing toghether with the ones of your dataset. By using the icon highlighted in the below image you can reopen the details pop-up.

Reopen details of a calculated field

Widget Theame

This is a functionality introduced on the new Dashboard available in the Settings section just clicking on Style. See below image.

Widget Theame

The below image shows an example of two different themes applied to the corresponding table widgets.

Widget Theame example

The available themes have to be previously defined by an admin user.

Filters and ordering on fields

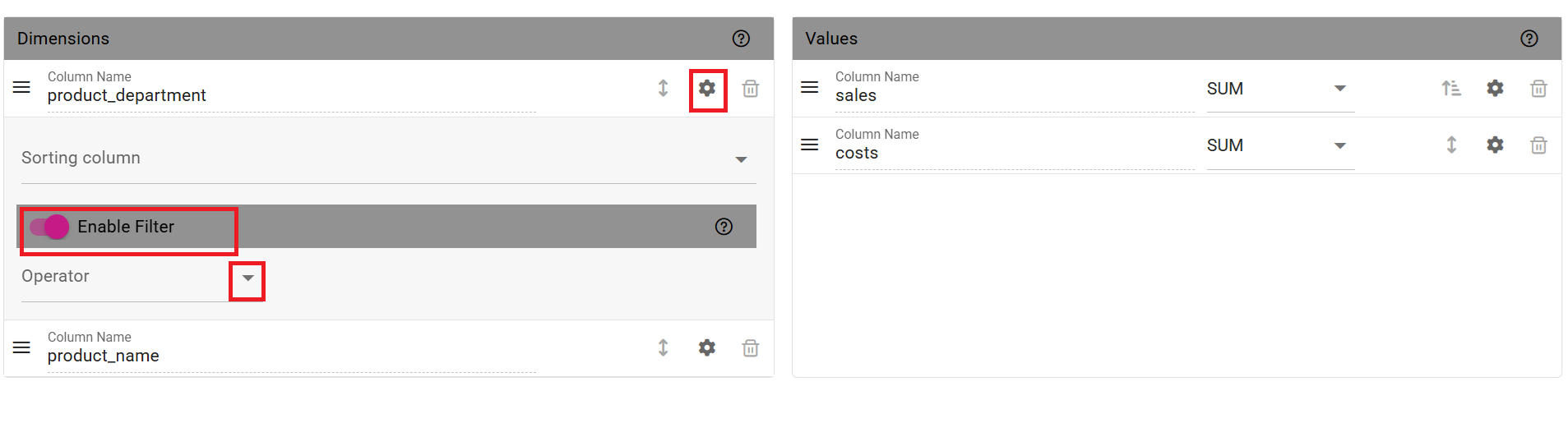

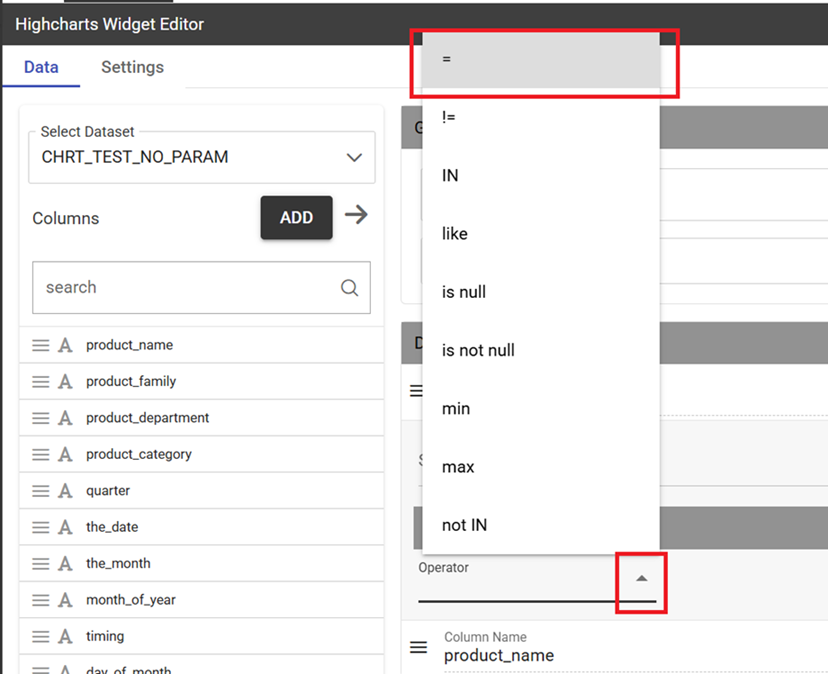

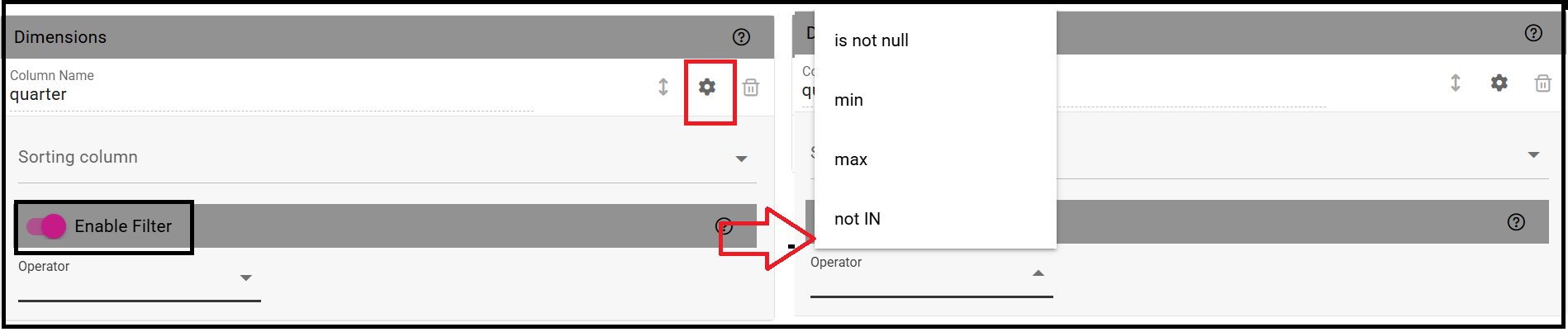

The below two images shows how to enable the filtering functionality on a specific field of a dataset. You need to click the gear icon and switch on the Enable filter to choose the comperison operator with a specific value.

Activating filters - 1

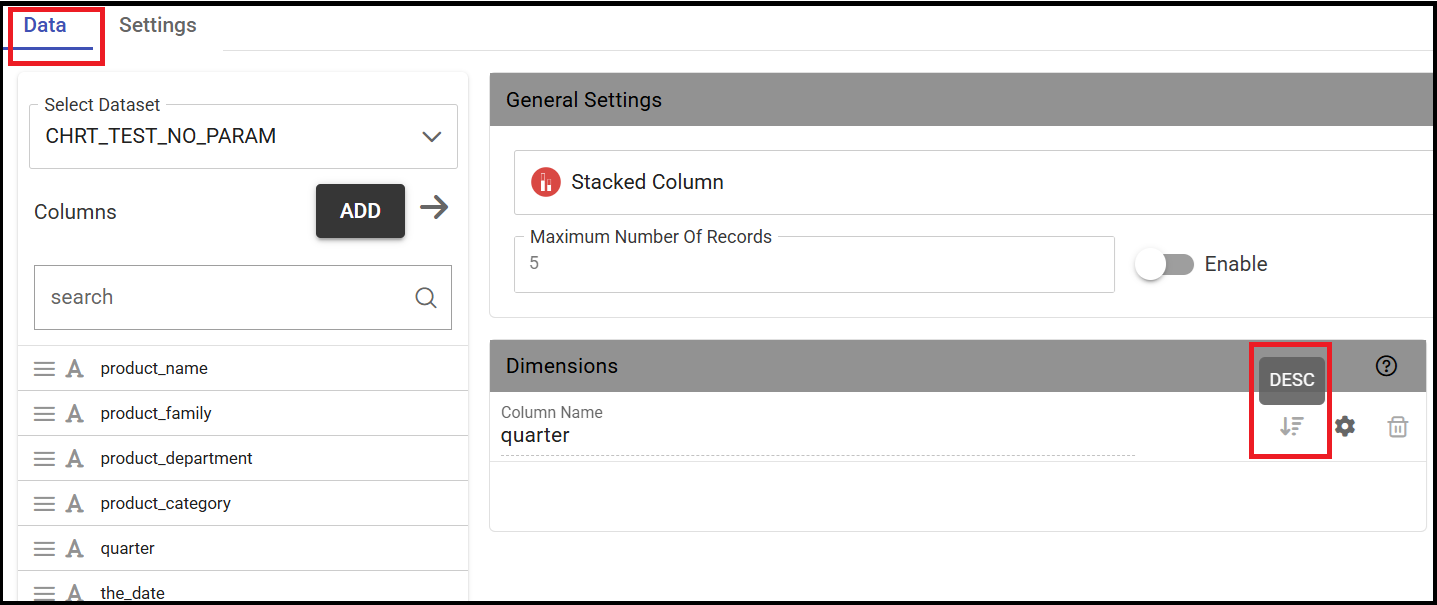

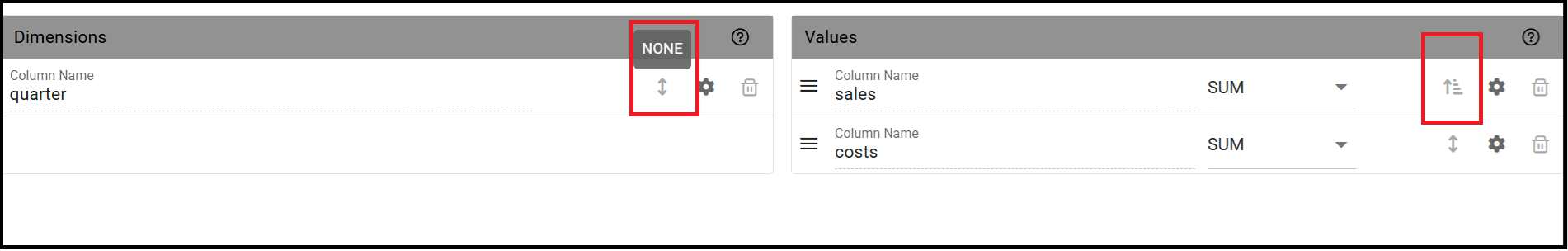

Ordering on a field

Variables

To create variables just click on the three dots menu of the bar, select General and then Variables as shown below.

Creating a variable - step 1

Select Variables from the menu and click on the Plus icon

Creating a variable - step 2

Type in the variable name, the type and Save

Creating a variable - step 3

Types of variables:

• Static: a static number or string

• Dataset: the value of a selected dataset column

• Profile: a set of profile attributes available (ie. the username)

• Driver: the value of a selected analytical driver

• Execution time: Simple Time or Time with seconds

• Execution date: date of execution of the dashboard with format options such as short date, medium date or full date and time

• Locale: values coming from the local settings

• Active selections: active selection on a specific column of the dataset

Associations

To create an association at least two datasets have to be selected.

Defining an association -step 1

Once the datasets have been selected, two attributes have to be choosen to establish the association.

Defining an association -step 2

The below image shows the associaton created between the fields of the two datasets. You need to save. It is possible to delete the association just clicking on the trash icon appearing on the right side of the association name.

Defining an association -step 3

Add a Custom Header

In case of more sheets inside a dashboard there may be a need to have the same header for all sheets. By enabling the header it can be made available for all sheets just in one shot. To create a custom header click the three dots item of the menu bar and select Custom Header as shown below.

Custom Header

The image used for the header can be selected from the Gallery if available and the Editor allows typing custom CSS/HTML if necessary.

Multisheet

The dashboard engine allows to manage contents in multiple sheets. Each sheet can contain different analysis with different datasets. Just click on the Plus icon and rename the new sheet.

Multisheet functionality

Export dashboard

The below image shows how to export the contents of a dashboard by using the Export functionality available in the menu. From the three dots, select Export and then one of the three options: PDF, XLSX, PNG.

Export functionality

Dashboard Template

Important

This functionality is only available for technical users.

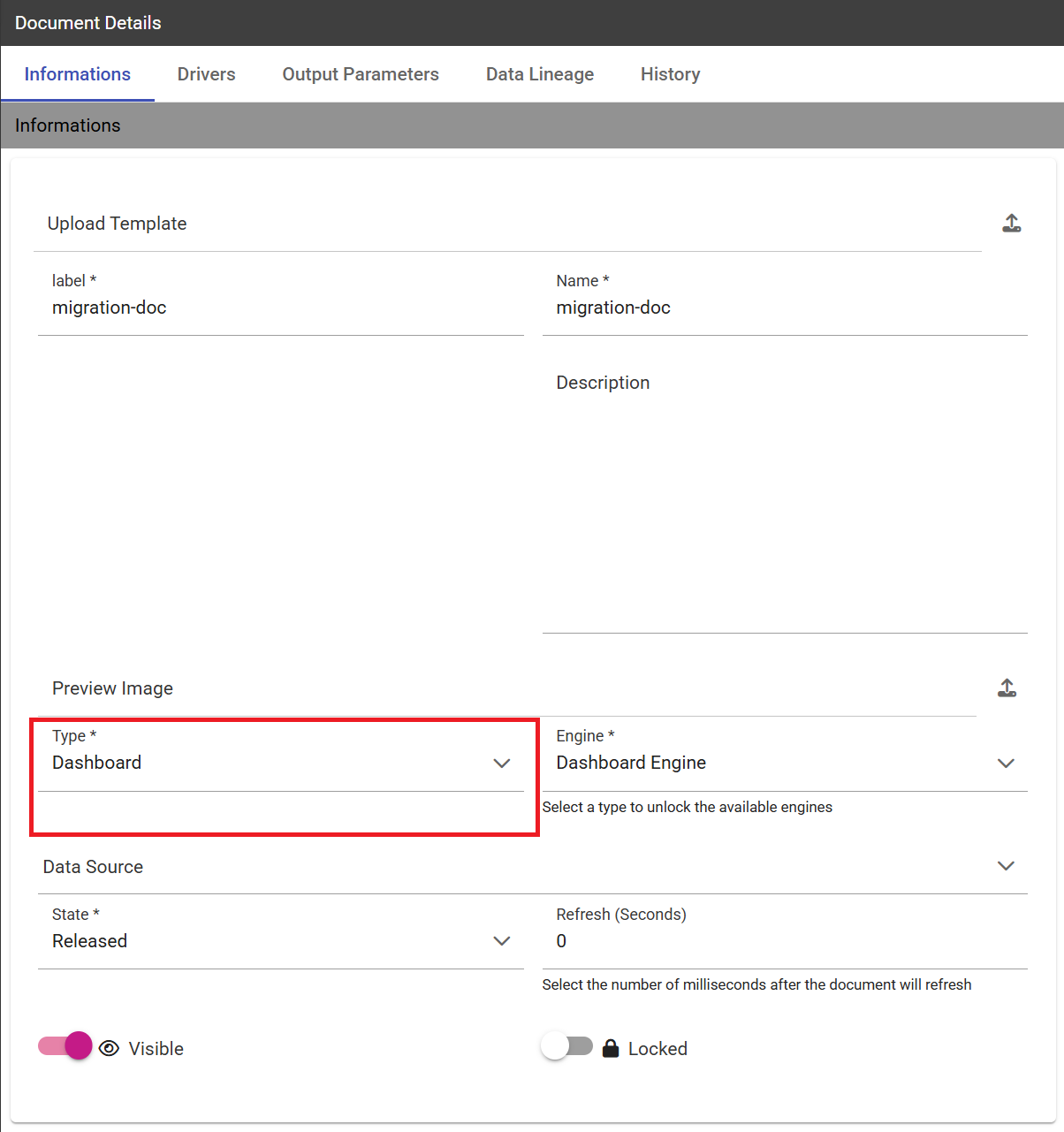

The template of a dashboard is available editing the analytical document from the Document browsers and downloading it from the History tab.

Dashboard template
